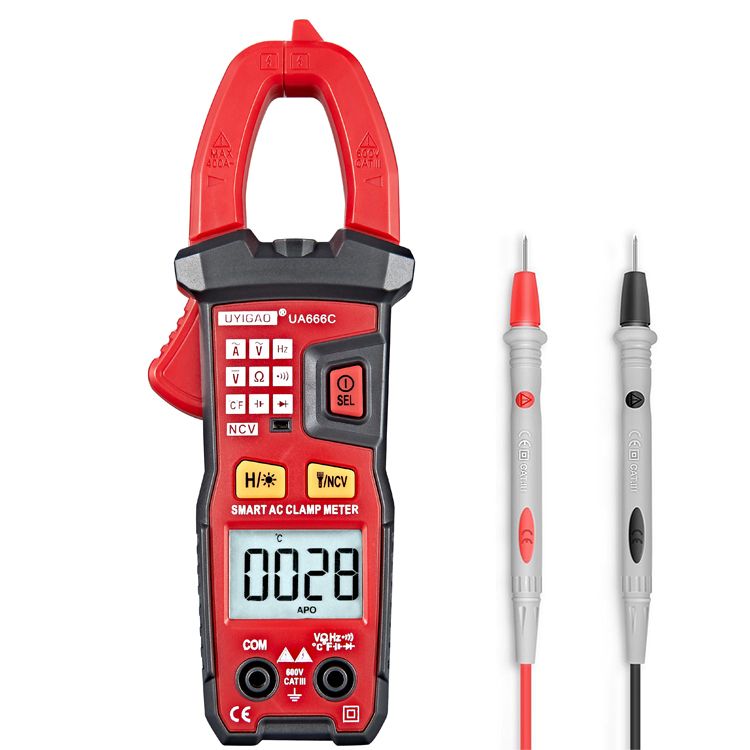

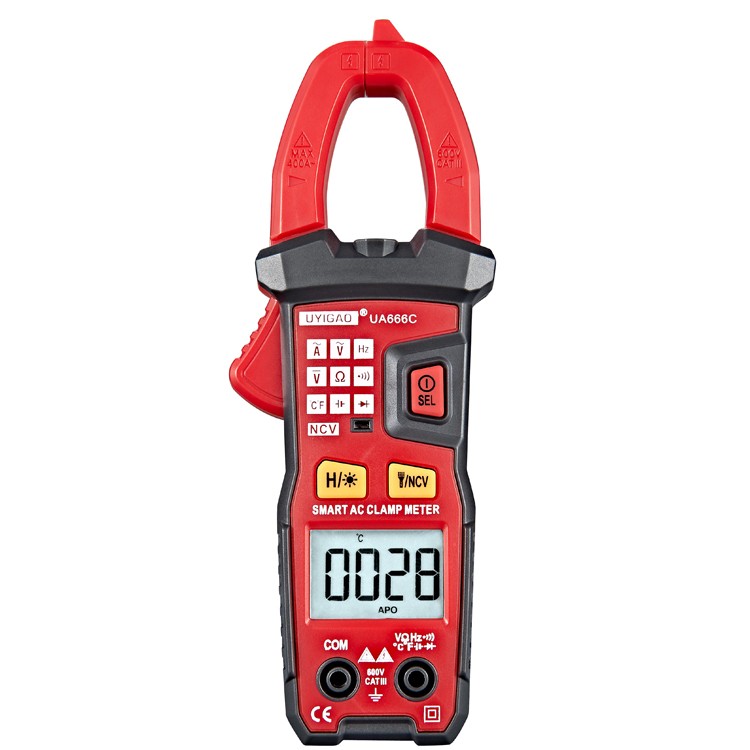

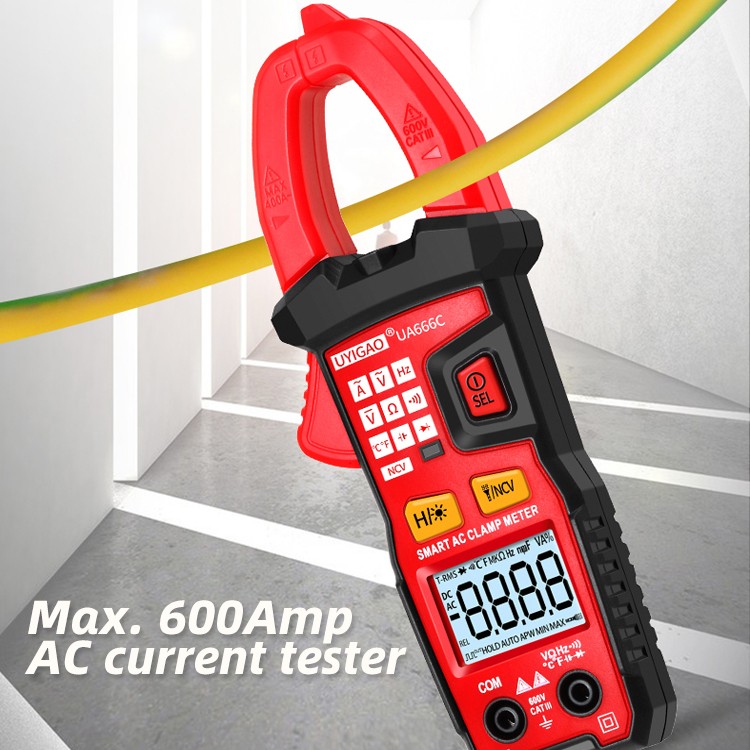

UA666C smart digital multimeter

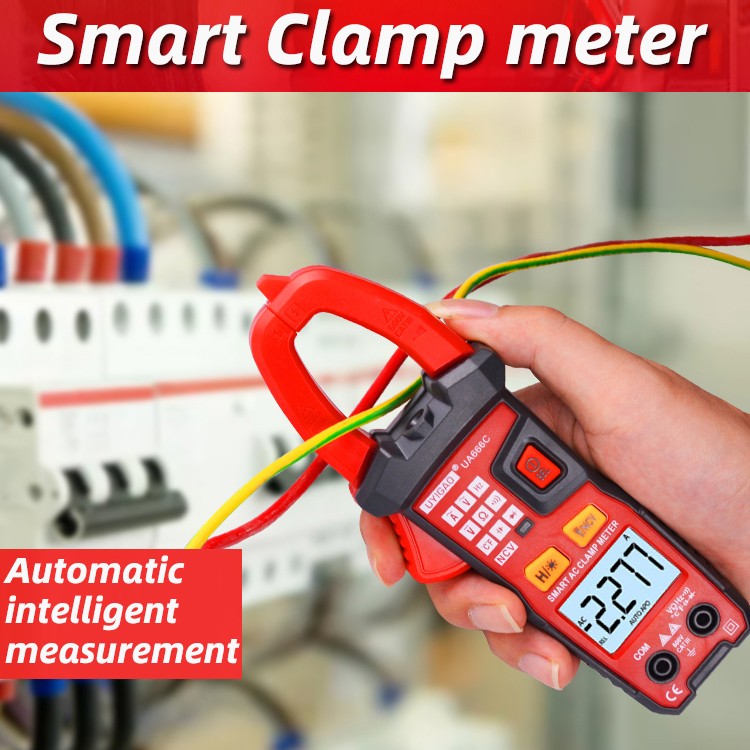

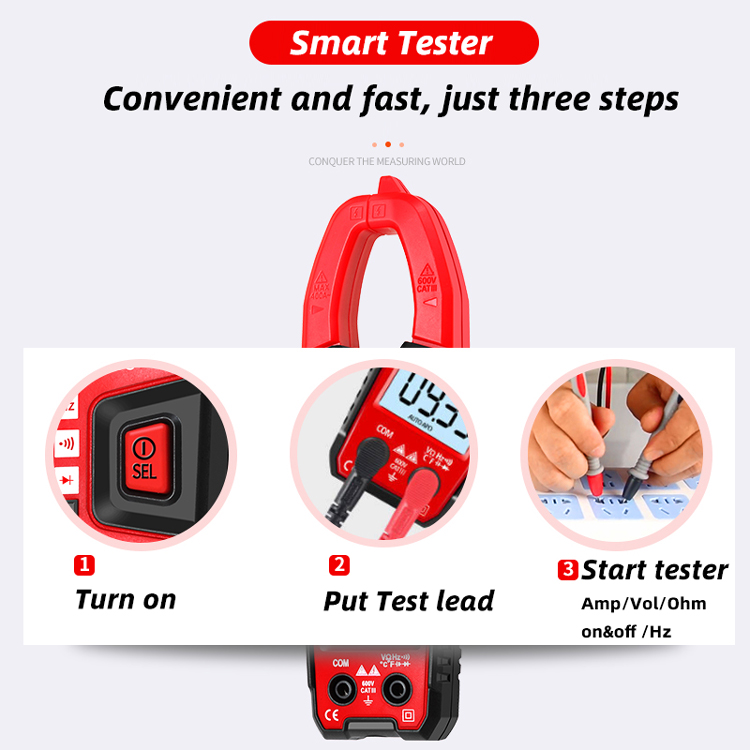

Smart automatic detection: No need to select AC or DC volts or resistance. Tester selects the right setting automatically
Large amp range capability: TRMS and AC up to 600A
Cat IV 600V

 New design smart automatic Clamp multimeter NCV AC Current Digital clamp meter UA666C


Basic functionRangeResolutionAccuracy
UA666C
AC Current6A0.001A±(3.0%+20d)
60A0.01A±(2.5%+8d)
400A0.1A
400A~600A0.1A±(3.0%+10d)
DC Voltage6V0.001V±(0.5%+3d)
60V0.01V
600V0.1V±(0.8%+5d)
AC Voltage6V0.001V±(0.8%+5d)
60V0.01V
600V0.1V±(1.2%+5d)
Resistance6KΩ0.001KΩ±(0.8%+3d)
60KΩ0.01KΩ
600KΩ0.1KΩ
6MΩ0.001MΩ±(1.2%+3d)
10MΩ0.1MΩ

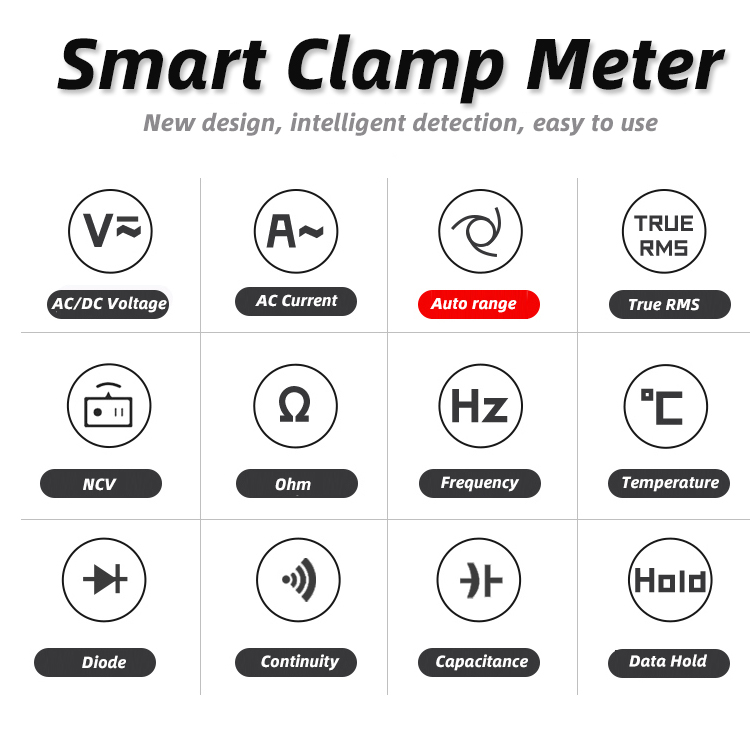

Special function
Auto power offYes

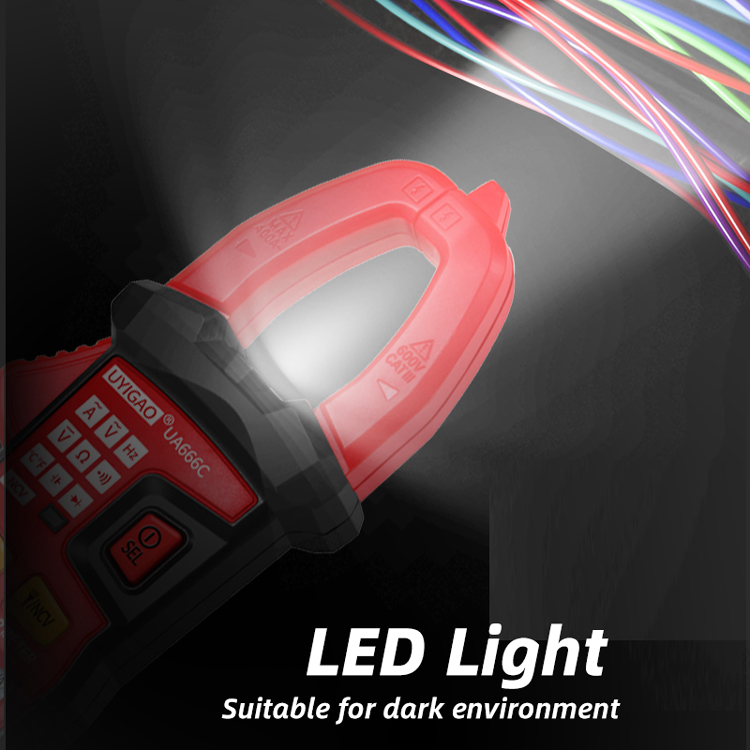

Backlights and Led lightYes
BuzzerYes
On-off measurementYes
Overload protectionYes
Low voltage displayYes
Power supplyYes

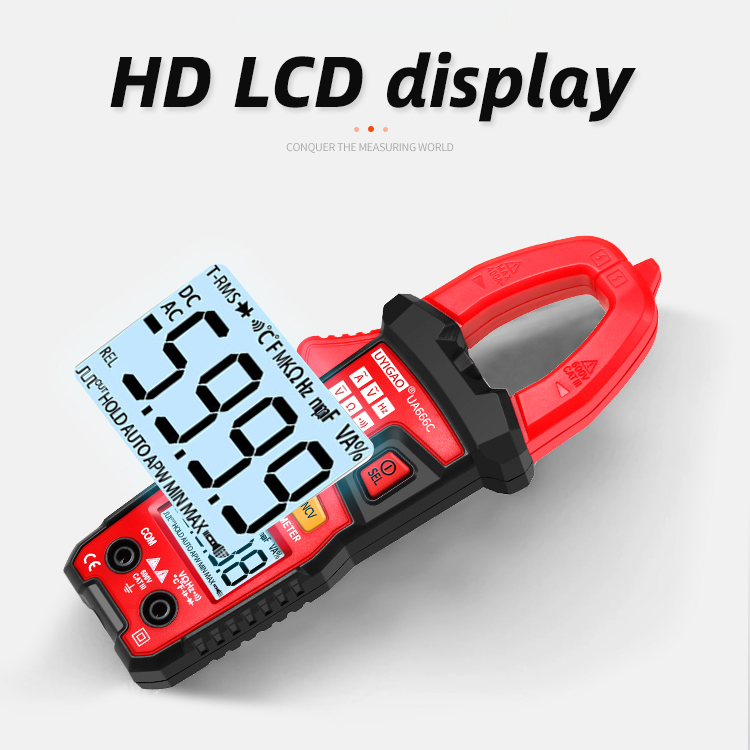

Maximum value display 5999

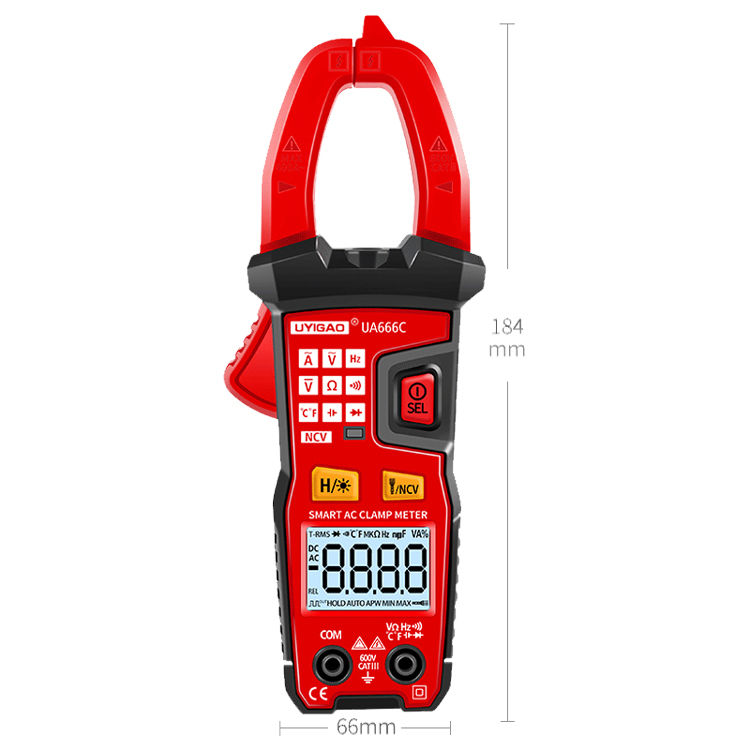

Size184.0mm*66.0mm*32.5mm
