Clamp On Ground Resistance Tester

The Digital Ground Resistance Tester Model 6412 performs ground resistance and soil resistivity tests. This direct reading testers measures from 0 to 1200Ω, and is auto-ranging, so it automatically seeks outs the optimum measurement range.

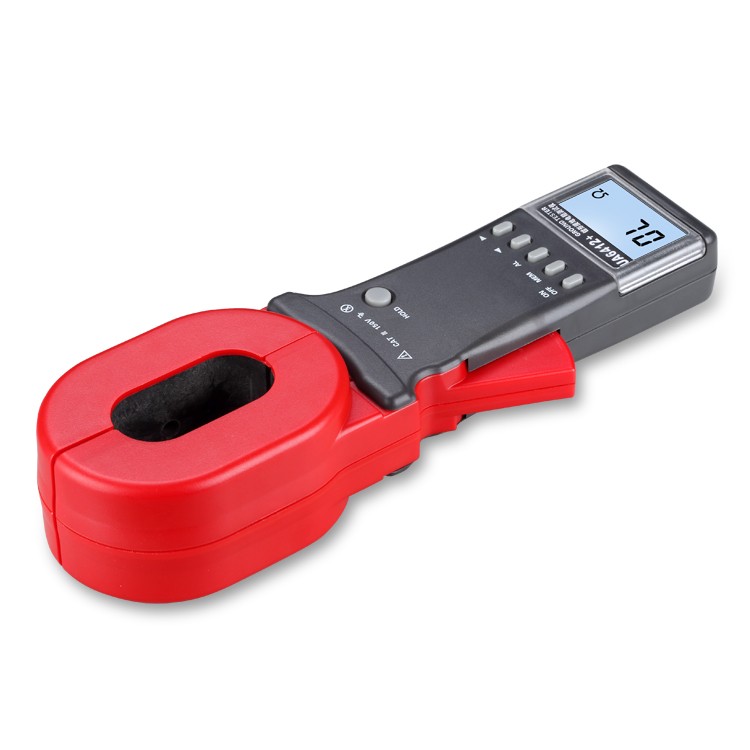

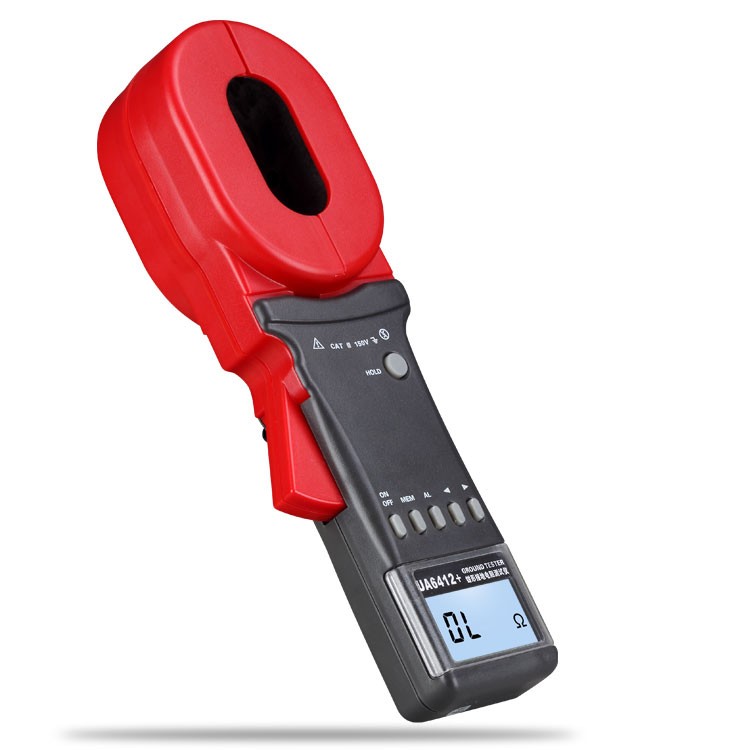

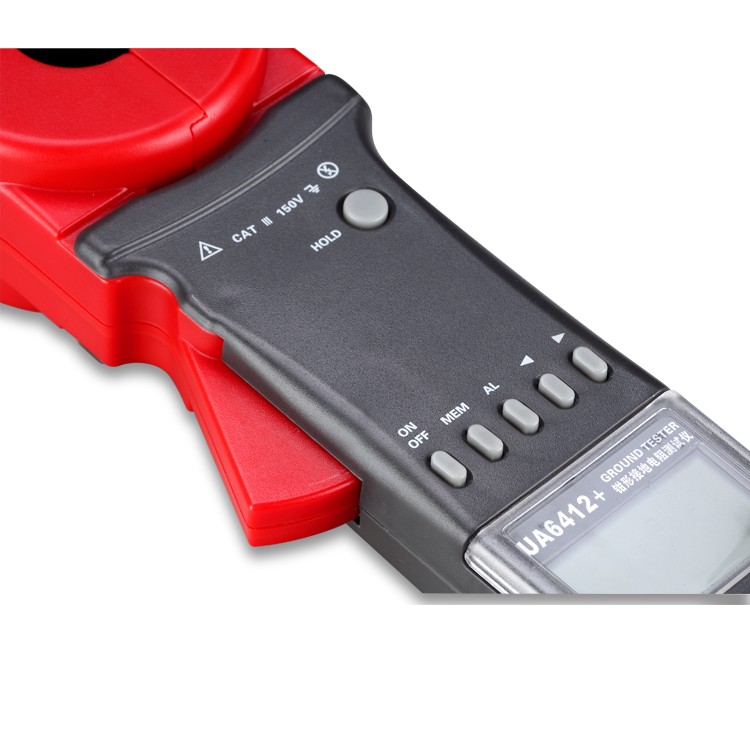

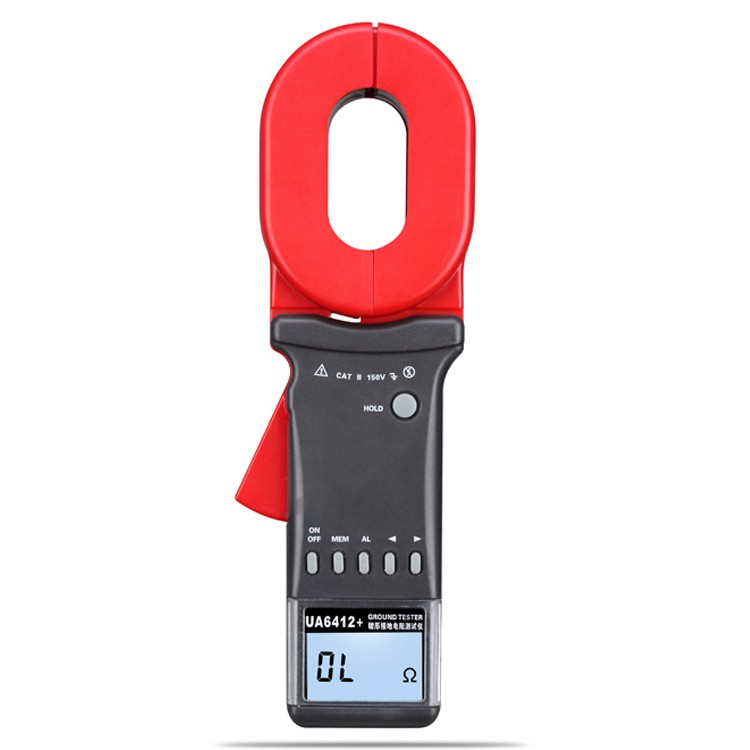

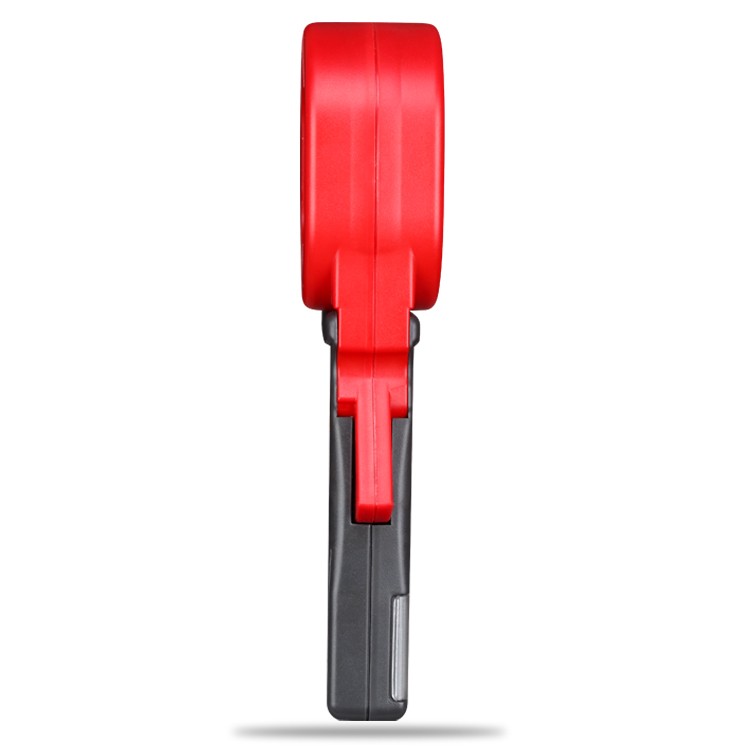

UA6412 1200ohm Digital Clamp On Earth Resistance Tester Ground Resistance Meter

Earth Resistance Tester, Ground Resistance Clamp on meter, Clamp on earth resistance meter


 UA6412 1200ohm Key Specifications/Special Features:

  • Clip-on table pleasing appearance easy to master

  • Parameters accurately

Basic featuresRangeAccuracy
Grounding resistance (Ω)0.01Ω-0.099Ω
0.1Ω-0.99Ω
1.0Ω-49.9Ω
50Ω-99.5Ω
100Ω-199Ω
200Ω-395Ω
400Ω-590Ω
600Ω-1200Ω
    ±(1%+0.01)
    ±(1%+0.01)
    ±(1%+0.1)
    ±(2%+0.5)
    ±(3%+1)
    ±(6%+5)
    ±(10%+10)
    ±(20%+20)

Current0-99mA
100-299mA
0.30-2.99mA
3.0-9.99mA
10-20mA
±(2.5%+5mA)
±(2.5%+10mA)
±(2.5%+0.02mA)
±(2.5%+0.03mA)
±(2.5%+0.05mA)
Low battery indication V
Data hold/storge V
Auto power off V
Single measurement1S
Relative humity10-90%
Work temperature-10-50°C
External electric field<40A/m
Single measuring time <1V/m
Measurement resistance resolution 0.001Ω
Current frequency 50Hz
Measurement data storage 30sets
Resistance measurement range 1-199Ω
Current measurement range 1-499mA
Protection leveldouble insulation
Operating modeautomatic range
Spab of jaw28mm
Power6VDC
