ua2018a digital clamp meter

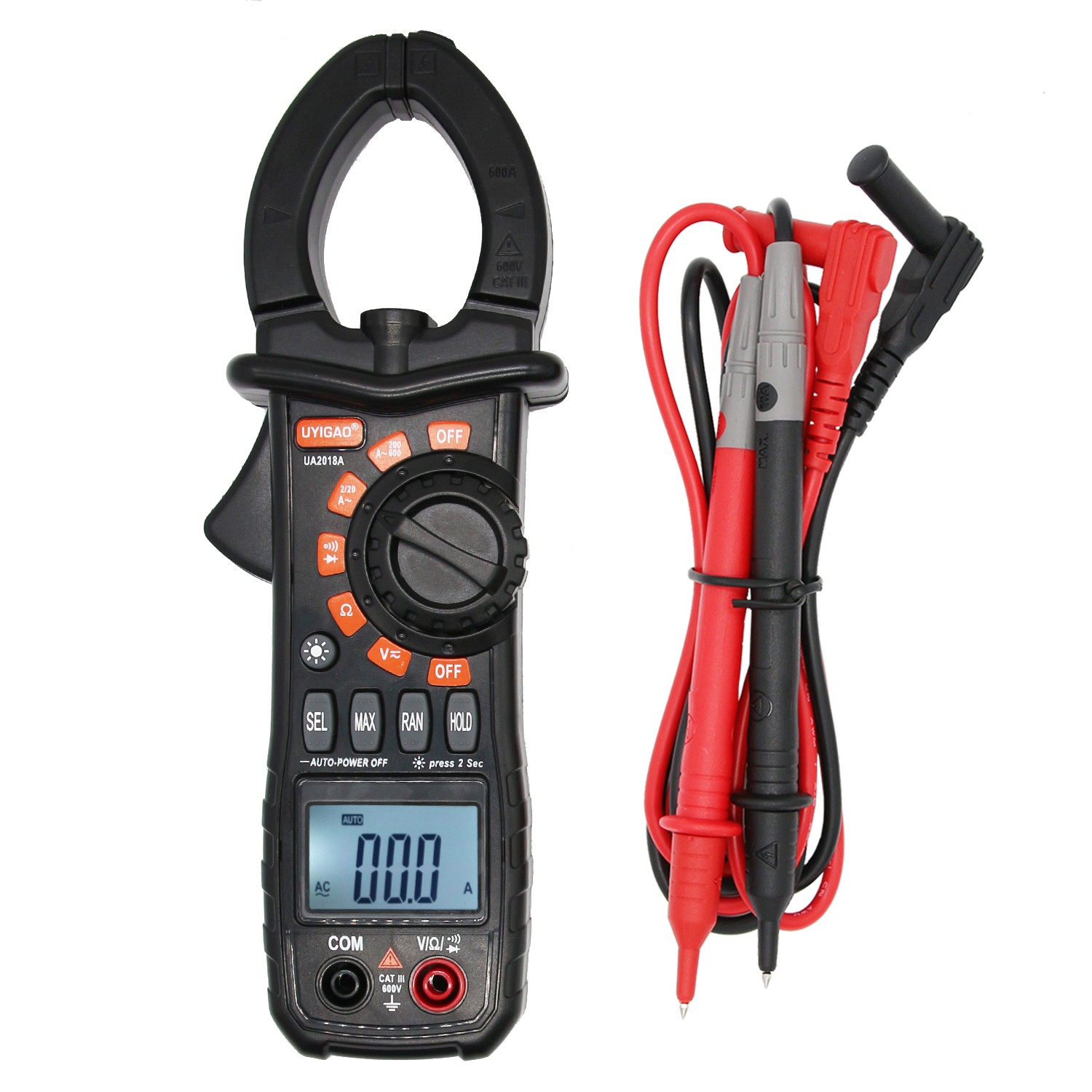

UA2018A Digital Handheld Clamp Multimeter Tester DMM Voltmeter Amp AC DC Voltage and AC current tong tester

Digital clamp meter,2000 Counts Auto Range multimeter with AC/DC Voltage, Resistance, AC Current, Diode Test, Build in Flashlight and LCD Display (UA2018A)

Specification:
--Display: 3 1/2 digital LCD display
--Clamp Flashlight , LCD Backlight, Date Hold and Low Battery Indication
--DC Voltage and Accuracy: 2~600V ±(0.8%+5)
--AC Voltage and Accuracy: 2.0~600V ±(1.2%+5)
--Resistance and Accuracy: 200Ω~200MΩ ±(1.2%+5)
--AC Currentand Accuracy: 2A~600A ±(2.5%+8)
--Max display value: 1999
--Diode Test: Yes
--ON-OFF Buzzer: Yes
--Low Battery Display: Yes
--Data Hold: Yes
--Auto Power off: Yes
--Function Protection: Yes
--Operating Mode: Manual Range
--Back Light Function: Yes
--Back Lighting: Yes
--Led Torch: Yes
--Size: 208x79x36mm
--Max Clamp Jaw Opening: φ36
--Power Supply: AAA 1.5V*3 Batteries
--NOTE: Batteries are not included!!!
--Weight: 333g
--CE Certified Clamp Meter

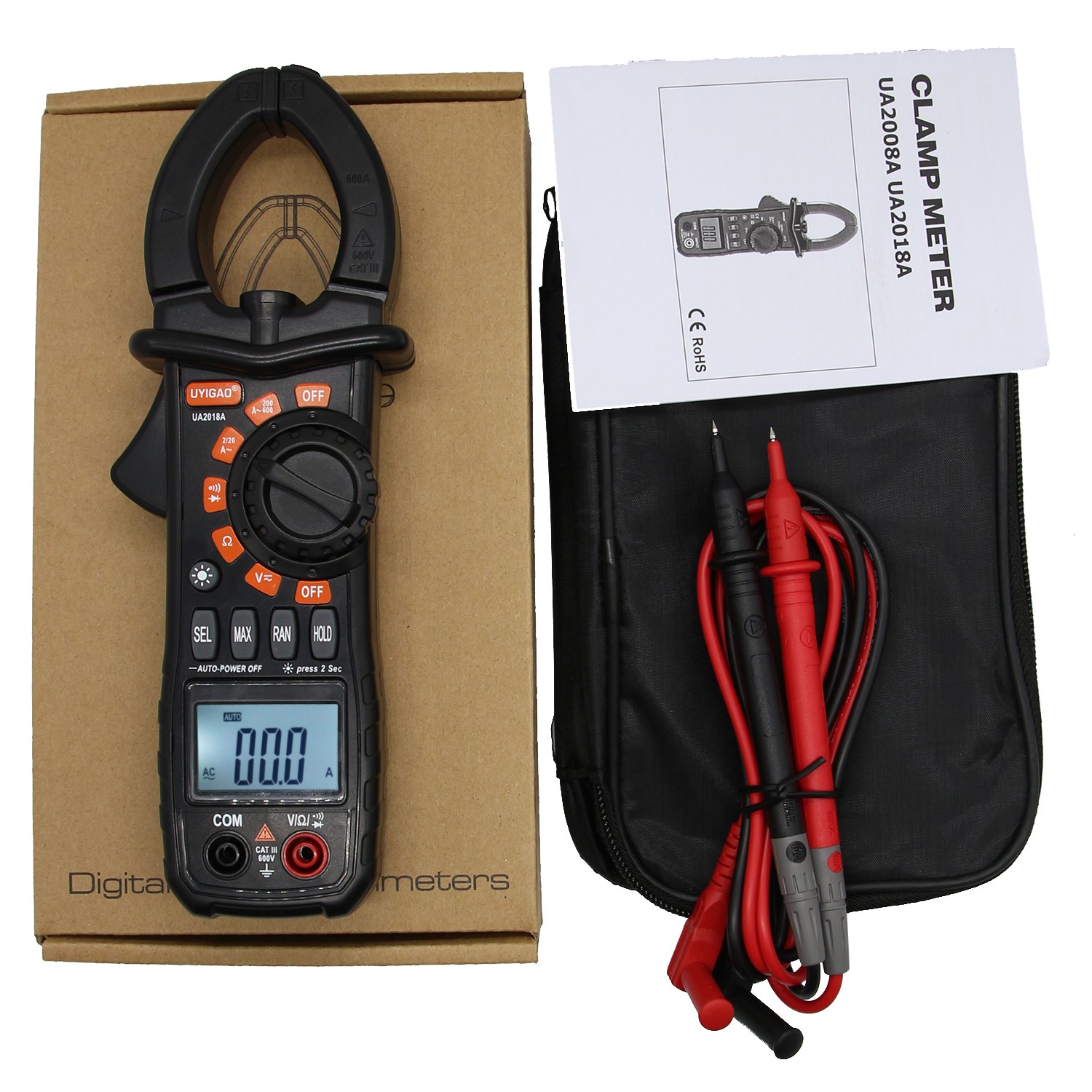

Package Content:

1xDigital Clamp Multimeter
1xUser's Manual
1xCarry Case
1xTest Leads





·Different Testing Range of this three Clamp Meter: UA2018A testing AC/DC Voltage Resistance AC Current Diode for your basic needs;UA2018B testing AC Current AC/DC Voltage Resistance Capacitance Temperature Frequency Inrush Current NCV Diode;UA2018D testing AC/DC Current, AC/DC Voltage, Resistance, Capacitance, Temperature, Frequency, Duty Ratio, Inrush Current, NCV, Diode.


·Different Display of this three Multimeter:UA2018A is 3 number 1/2 digital LCD display,max display value is 1999; UA2018B and UA2018D both are 3 Number 3/4 digital LCD display max display value is 5999.


·Multi choice for your Needs:UA2018A is for your basic needs,UA2018B is for a little professional needs, if you need a super professional clamp meter and want to test DC current please choose UA2018D,note UA2018A and UA2018B can’t test DC current;

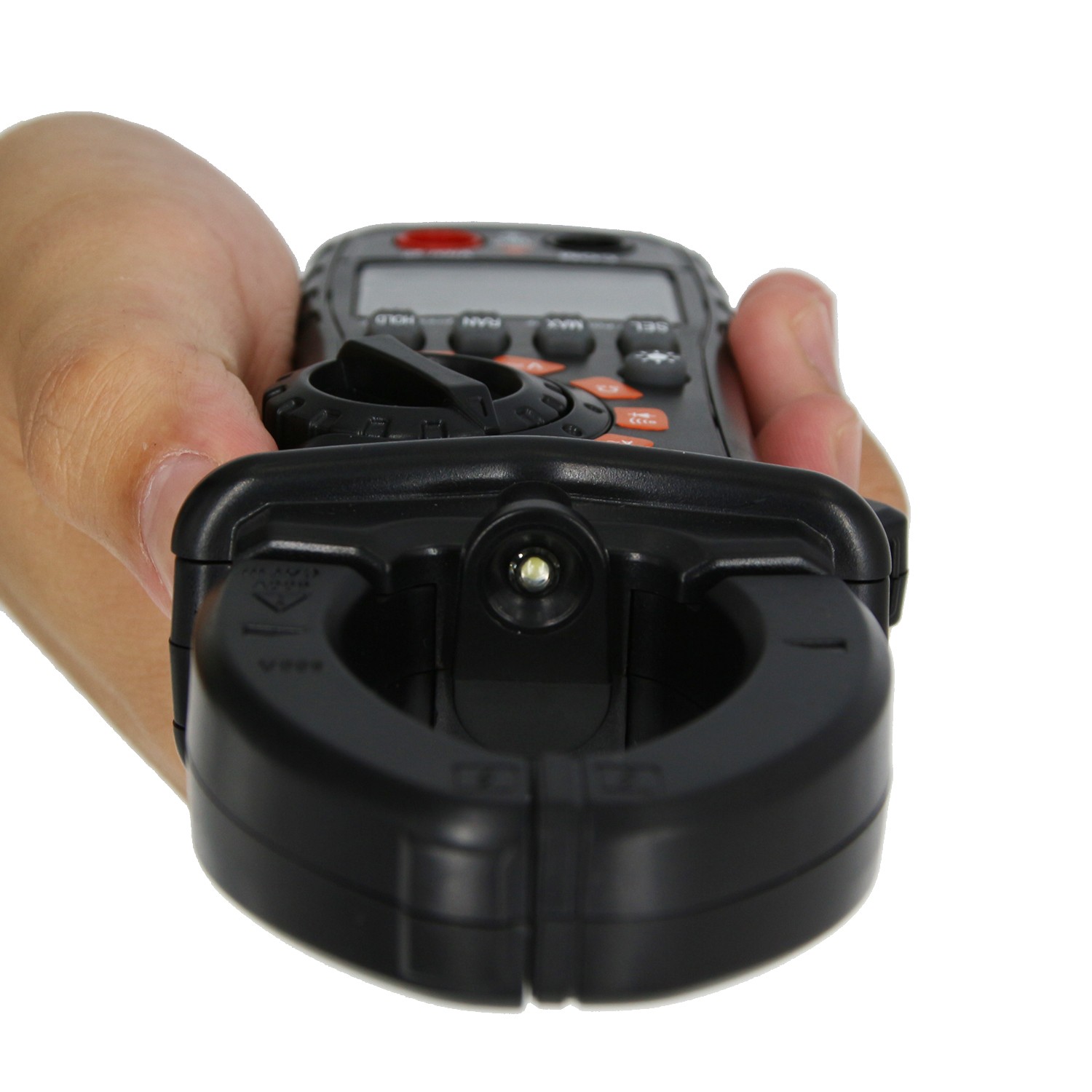

·Convenient Flash Light and Portable Design: one-hand holding design allows you do testing by one hand, portable size come with a pack bag is convenient for you to take it anywhere, Build in LED flashlight for clamp measuring in the dark area;

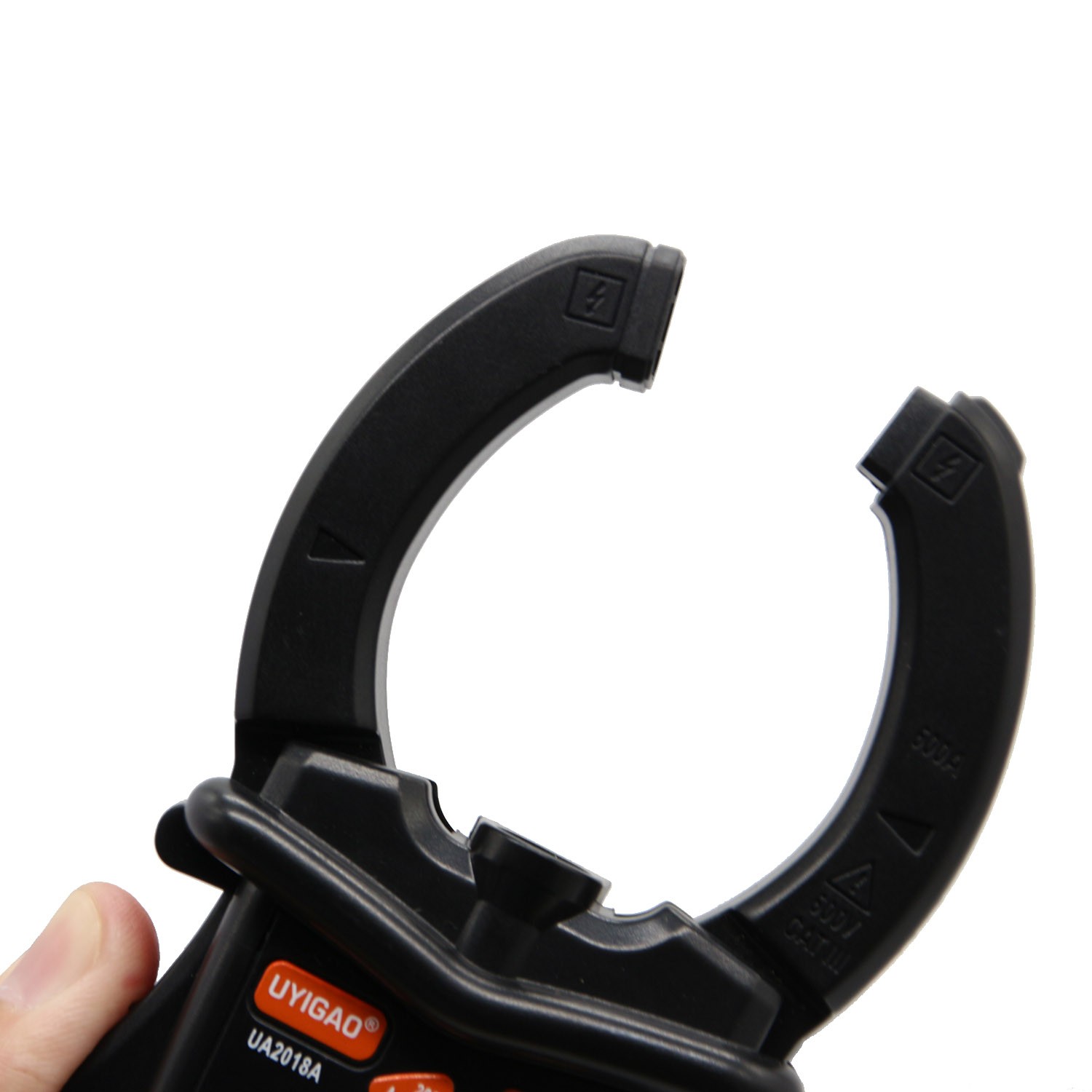

·Maximum jaw opening size: 36mm. Comes with upgraded test leads LCD backlight, data hold and low battery indication, Comes with upgraded test leads,


·Over-range indication: LCD will display OL. Power: 3 x AAA 1.5V ( Batteries are not included here)


Please note UA2018A clamp only measure AC current,it don't support DC current.

NOTE: Batteries are not included!!!



Package Content:1 x Digital Clamp Meter

1 x Pouch Bag

1 x English Manual
