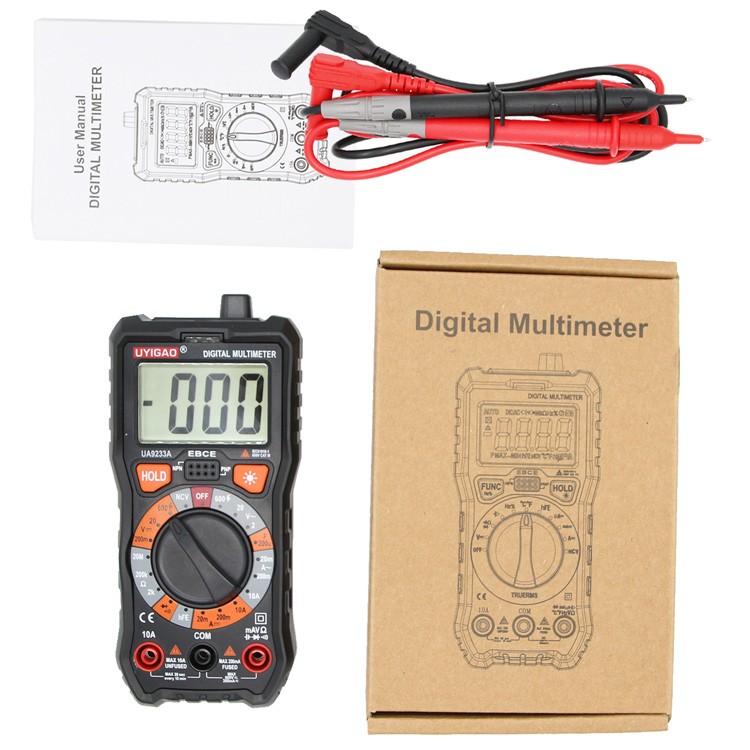

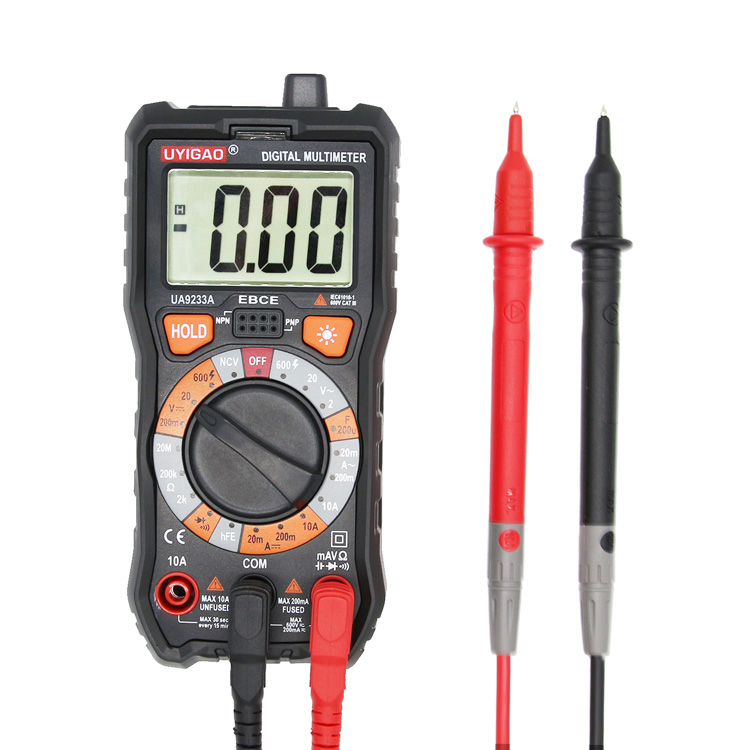

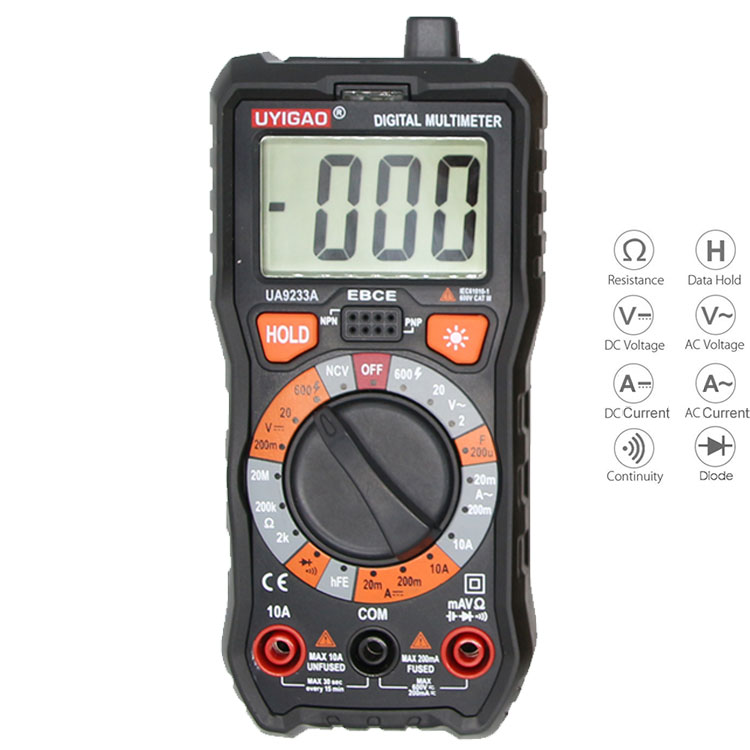

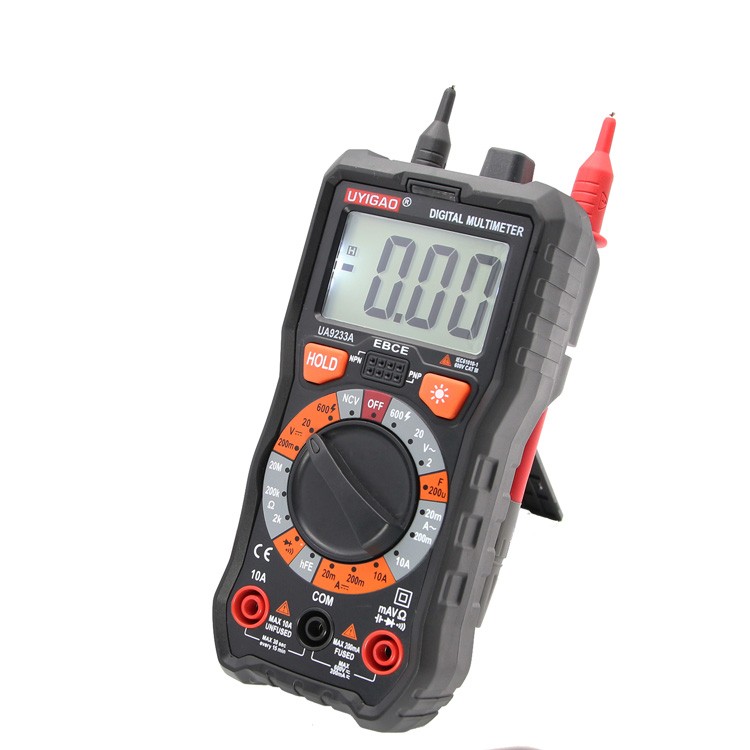

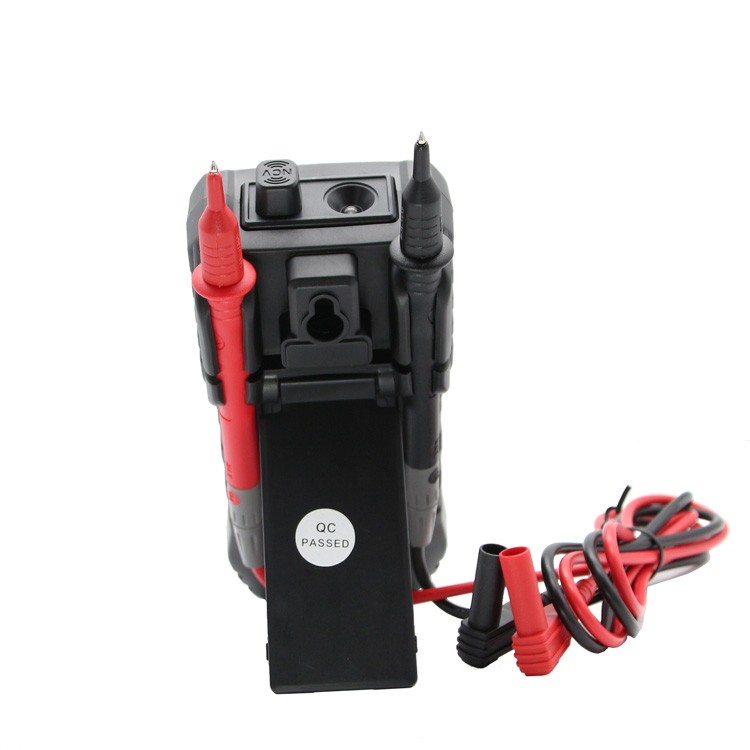

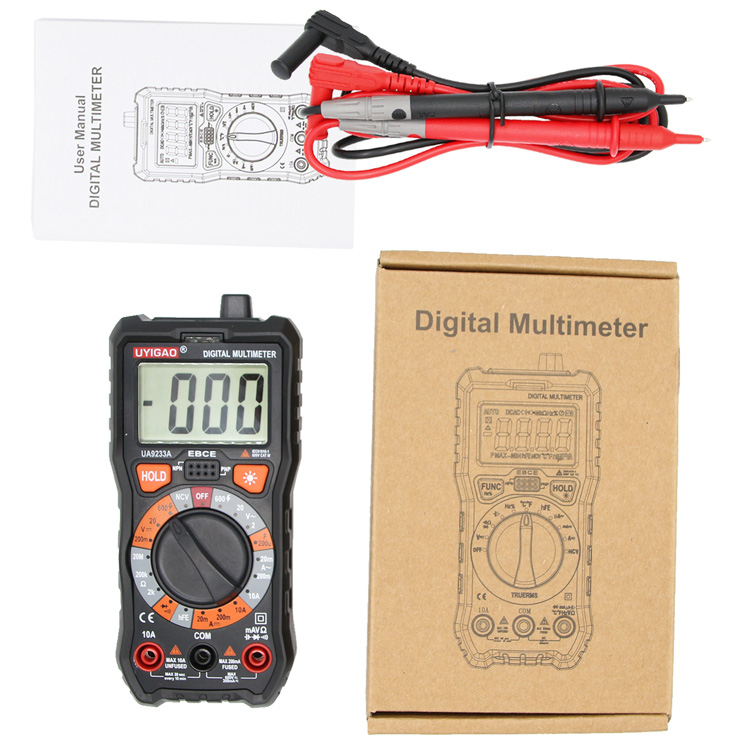

ua9233a mini digital multimeter

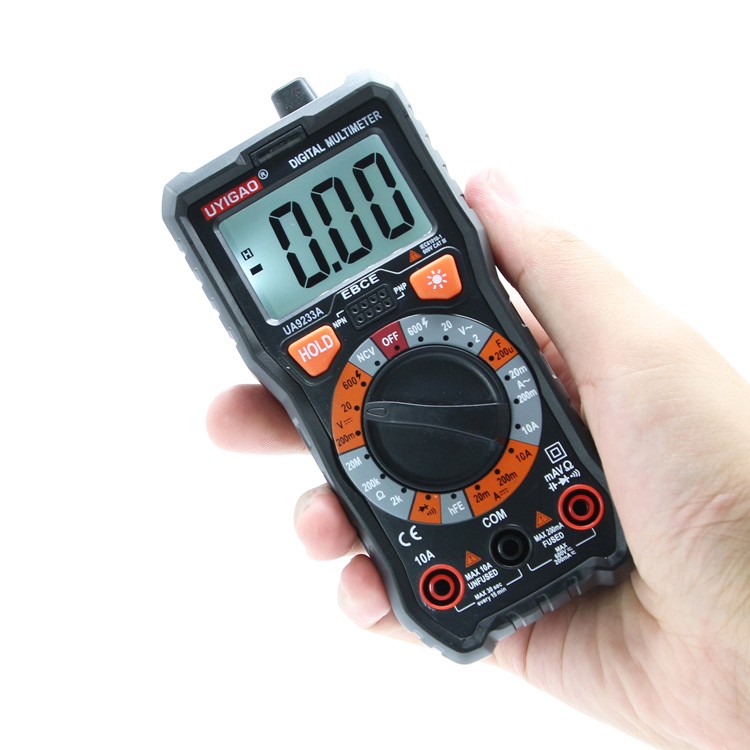

Designed for easy one-hand operation, the ua9233a digital multimeter is the perfect troubleshooting tool for go/no go testing. This palm-sized digital multimeter delivers safe, reliable measurements time after time.

 1999 digital multimeter for measuring capacitance, resistance, temperature, TRMS, NCV, 10A AC/DC current; 600V AC/DC voltage



UA9233ANew Digital Multimeter with NCV ,Manual range, 1999 display. AC/DC 10A;AC/DC 600V;Capacitamce ;Diode Test ;Transistor,Backlight ;continuty test, Data hold





General characteristics:

1. Display: LCD
2. Maximum display: 1999, 3 5/6 automatic polarity display and unit display
3. Measurement methods: double integral A/D conversion
4. Sampling rate: 3 times /second
5. Over range display: OL
6. Low voltage display: display low voltage symbols
7. Working environment: 0 to 40°C, relative humidity <80%
8. Storage environment: -10 to 50°C, relative humidity <80%
9. Battery: 6F22 battery 9V  (NOT including by air freight.)
10. Volume size: 140 (L) × 68(W) × 49(H) mm
11. Weight: about 266g (including battery)


Basic functionRangeBasic accuracy
DC voltage6/60/600V± (0.5%+5)6/60V
± (0.8%+5)
: 600V
AC voltage6/60/600V± (0.8%+3d): 6/60V
± (1.0%+10d): 600V
DC current

600uA/6000uA/60mA/

600mA/6A/10A

± (1.5%+10d): 600uA/6000uA/60mA/600mA
± (2.5%+10d): 6A/10A
AC current

600uA/6000uA/60mA/

600mA/6A/10A

± (1.5%+10d): 600uA/6000uA/60mA/600mA
± (2.0%+10d): 6A/10A
Resistance600Ω/6/60/600KΩ
/6/600MΩ
± (0.8%+3d): 600Ω/
   6/60/600kΩ
± (1.2%+3d): 6MΩ/600MΩ
Capacitance

9.999nF/99.99nF/999.9nF/

9.999uF/99.99uF
/999.9uF/9.999mF/99.99mF


± (4.0%+3d): 9.999nF/99.99nF/999.9nF/

9.999uF/99.99uF
/999.9uF
± (5.0%+3d): 9.999mF
not specify: 99.99mF

Temperature-20 to 300°C
301 to 1000°C
-4-600°F
601-1832°F
-20-300ºC: ± (1.0%+4)
301 to 1000°C: ± (1.9%+5)
-4-600°F:± (1.2%+6)
601-1832°F ± (1.9%+6)
Frequency9.999/99.99/999.9Hz/
9.999/99.99/999.9kHz
9.999MHz
± (1.0%+3d)
Special function

NCV  test V
Diode testing
Triode testing
 V
Low battery display V
Data Hold/TRMS/NCV V
Automatic turn-0ff V
Function protection V
Automatic resettable fuseV
Backlight V
Self-recovered Safety V
Operation mode Manual range
Maximum display 1999
Weight266g,140(L)×68(W)×49(H)mm
Power9V battery (6F22) NOT including by air freight.
