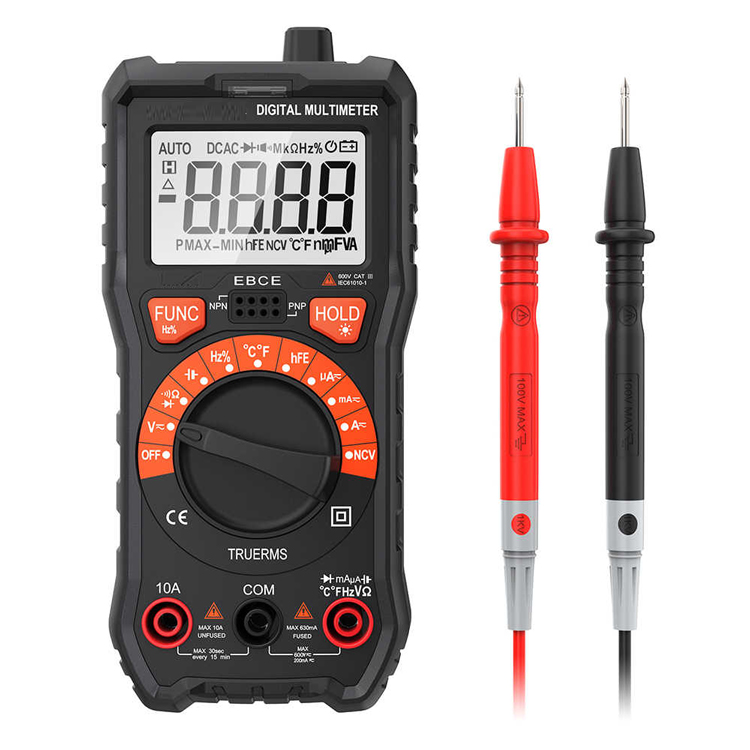

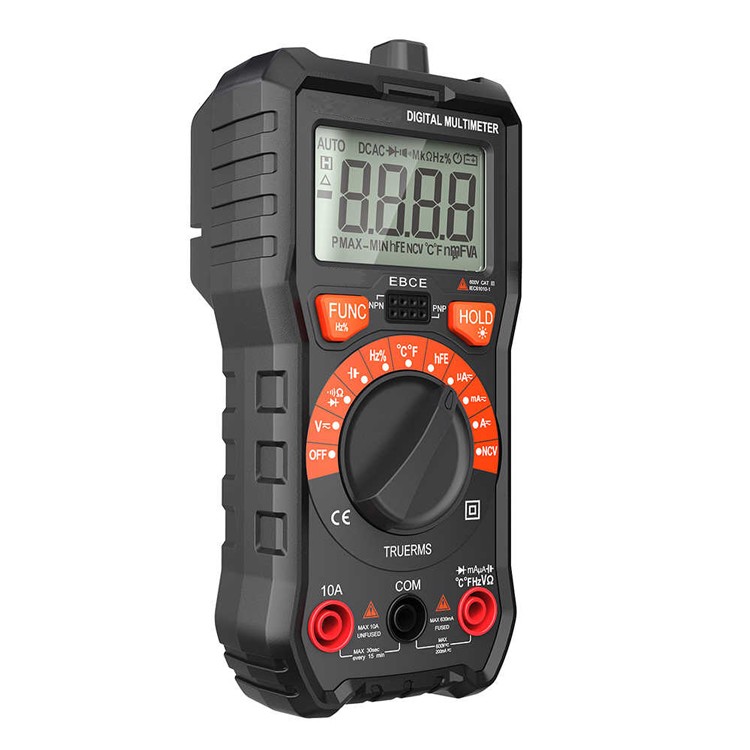

2000 counts compact digital multimeter UA9233D

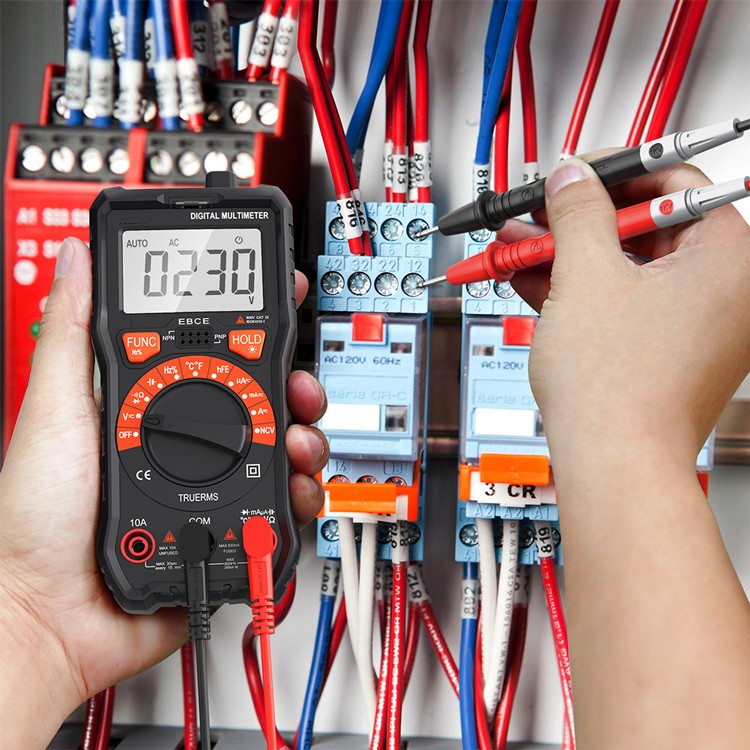

This auto ranging multimeter is capable of measuring AC/DC voltage and current, resistance, frequency, capacitance and temperature. Featuring double molded plastic housing, the ua9233d includes diode check and continuity functions and ships complete with test leads and a thermocouple probe for contact temperature measurements.

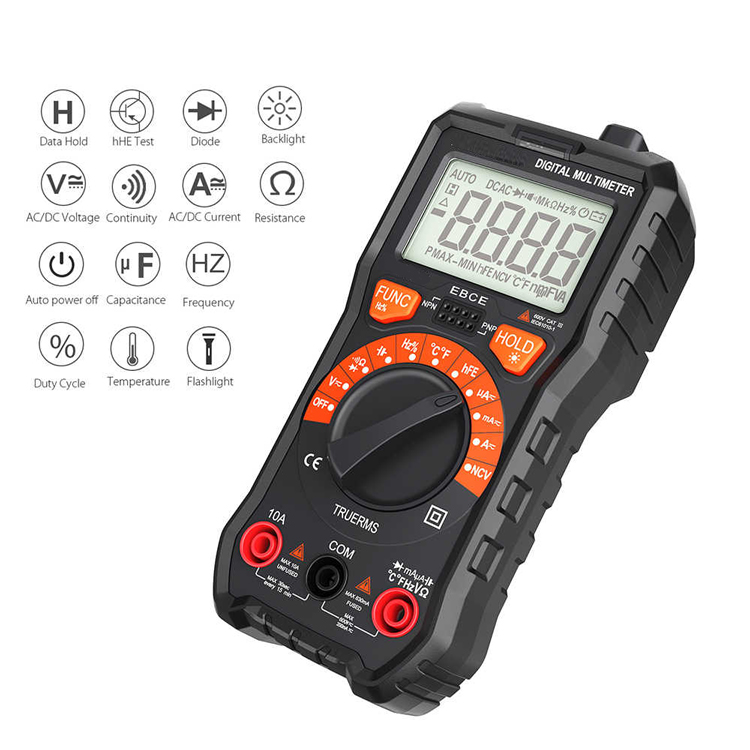

Auto Range Digital multimeter with Frequency Measurement

  • Digital Multimeter:Measuring DC/AC voltage,DC/AC current,Frequency,Duty cycle,

    Diode,on-off test,Temperature measurement ect.

  • Multi Functions:Instrument with Data Hold,Unit symbol display,Auto Power OFF,

    Full range overload protection.

  • Large LCD Display:3 number 1/2 digital LCD display,high accuracy, easy to use,

    make you clear reading, intuitive display.

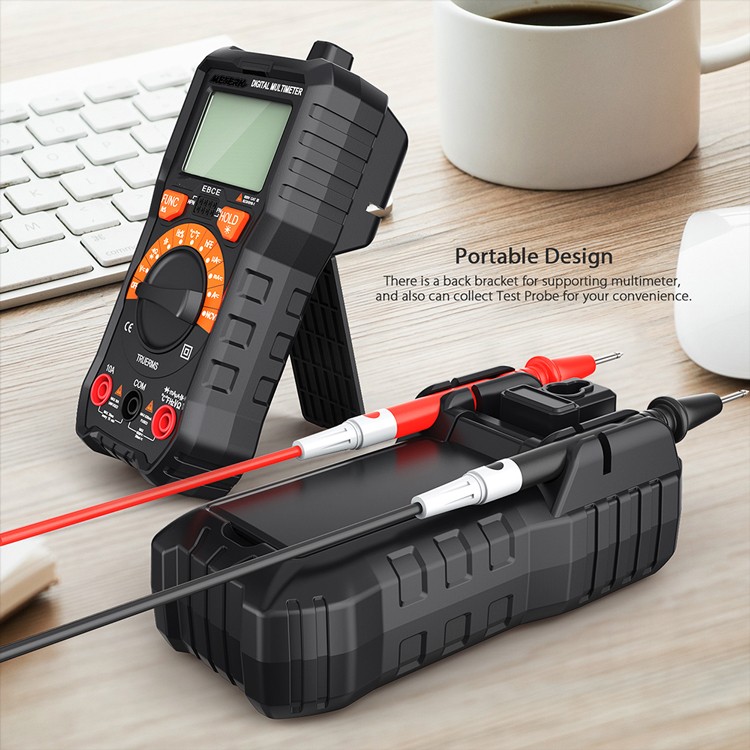

  • Portable Instrument:Comes with a handy carrying pouch and easy to use

    - Perfect for use while on the go.

  • WHAT U GET:1x Digital Multimeter(1000V 10A),1 x User Manual,

    1xTemperature probe.Power: 6F22 9V Battery ( Batteries are not included here.)

Basic functionRangeBasic accuracy
DC voltage2/20/200/600V± (0.5%+5)2/20V
± (0.8%+5)
: 200V/600V
AC voltage2/20/200/600V± (0.8%+3d): 2/20V
± (1.0%+10d): 200V/600V
DC current

200uA/2000uA/20mA/

200mA/2A/10A

± (1.5%+10d): 200uA/2000uA/20mA/200mA
± (2.5%+10d): 2A/10A
AC current

200uA/2000uA/20mA/

200mA/2A/10A

± (1.5%+10d): 200uA/2000uA/20mA/200mA
± (2.0%+10d): 2A/10A
Resistance600Ω/6/60/600KΩ
/6/600MΩ
± (0.8%+3d): 600Ω/
   6/60/600kΩ
± (1.2%+3d): 6MΩ/600MΩ
Capacitance

9.999nF/99.99nF/999.9nF/

9.999uF/99.99uF
/999.9uF/9.999mF/99.99mF


± (4.0%+3d): 9.999nF/99.99nF/999.9nF/

9.999uF/99.99uF
/999.9uF
± (5.0%+3d): 9.999mF
not specify: 99.99mF

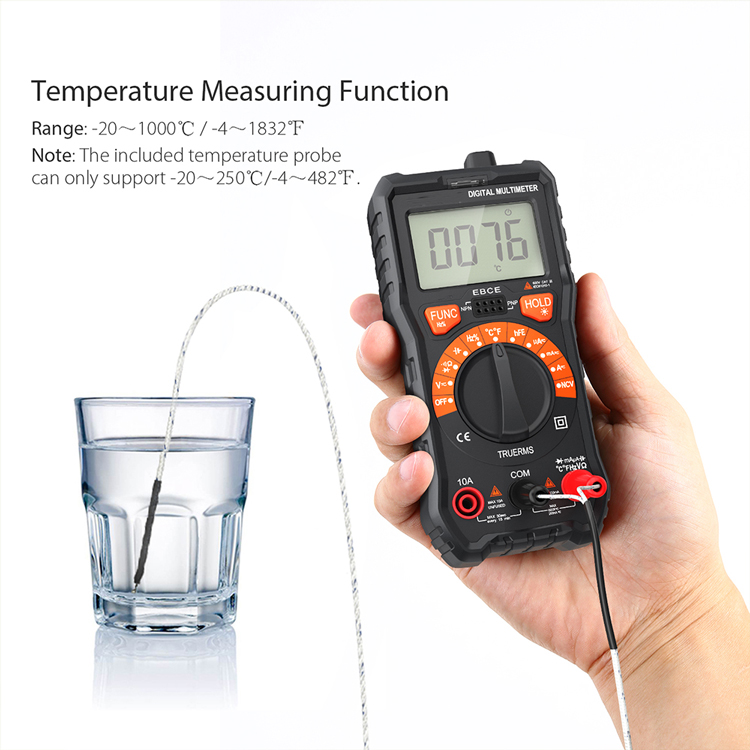

Temperature-20 to 300°C
301 to 1000°C
-4-600°F
601-1832°F
-20-300ºC: ± (1.0%+4)
301 to 1000°C: ± (1.9%+5)
-4-600°F:± (1.2%+6)
601-1832°F ± (1.9%+6)
Frequency9.999/99.99/999.9Hz
9.999/99.99/999.9kHz
9.999MHz
± (1.0%+3d)

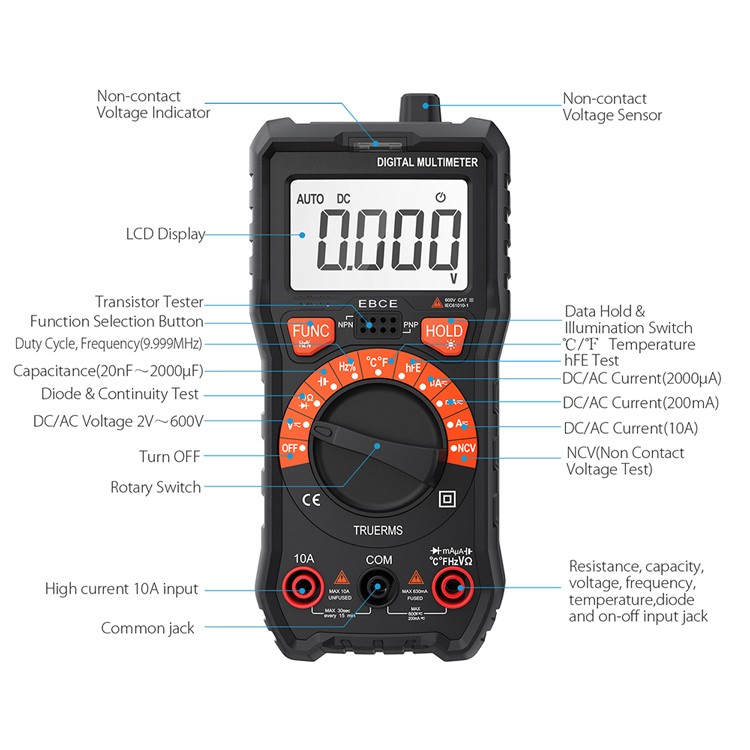

Special function

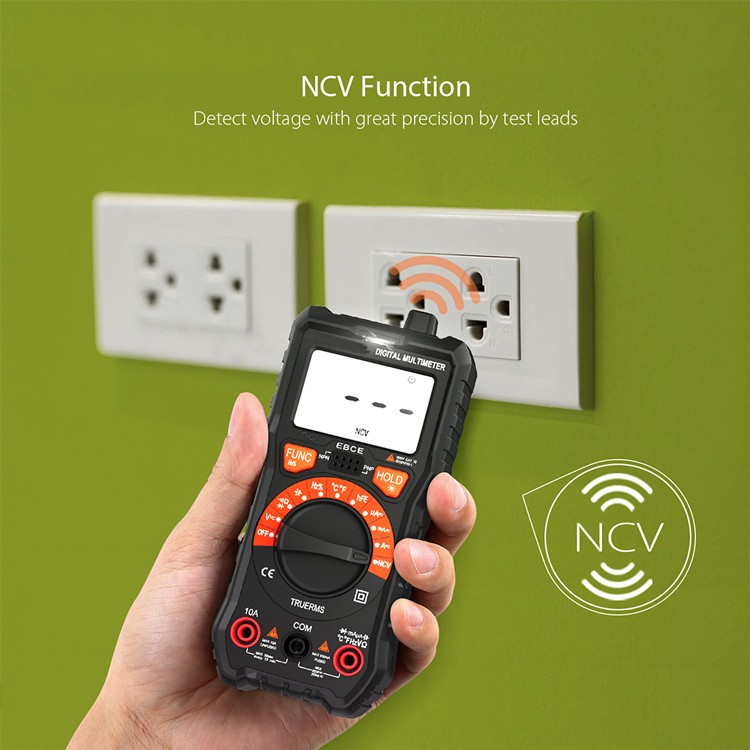

NCV  test V
Diode testing
Triode testing
 V
Low battery display V
Data Hold/TRMS/NCVV
Automatic turn-0ffV
Function protectionV
Automatic resettable fuseV

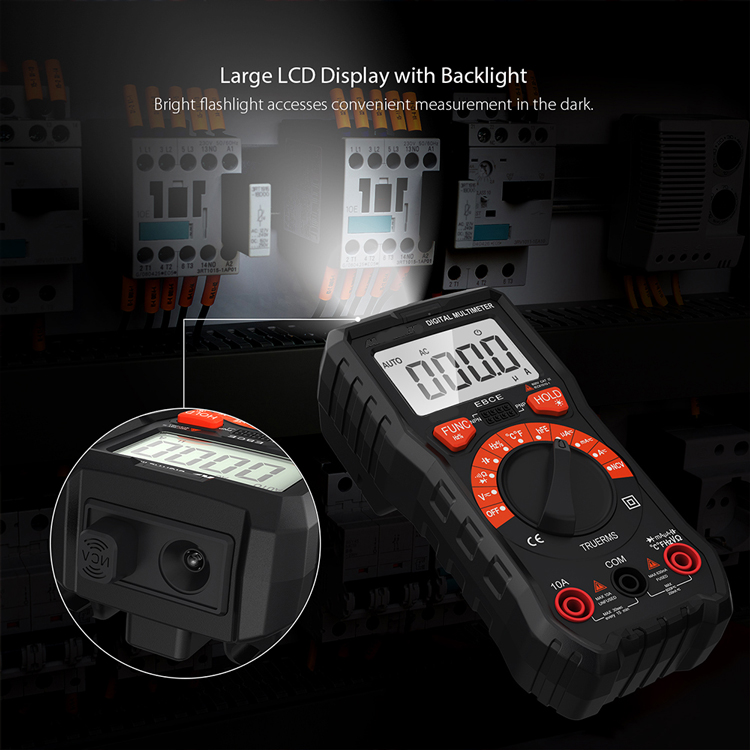

BacklightV
Self recovered SafetyV
Operation mode Auto range
Maximum display 1999

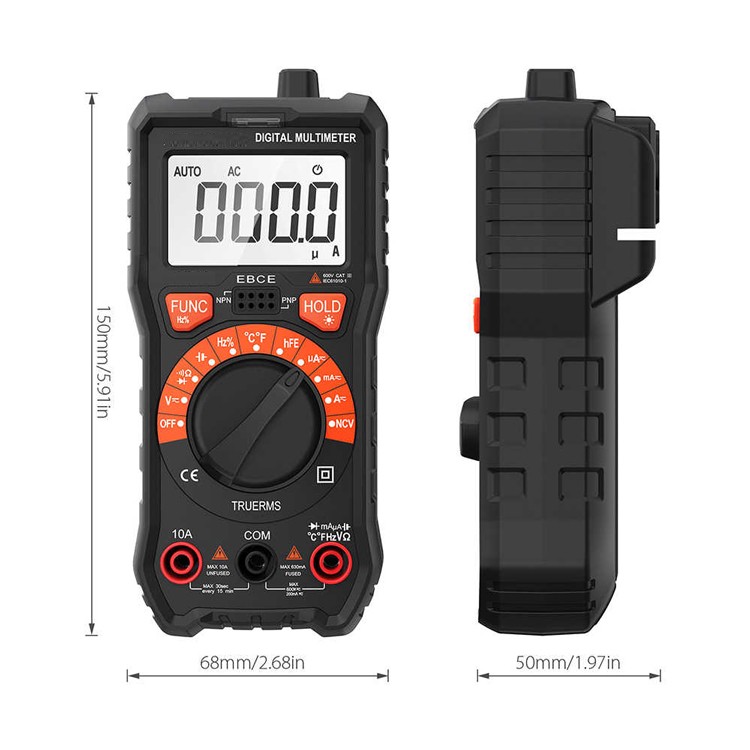

Weight266g, 140 x 68 x 49mm
Power9V battery (6F22) NOT including by air freight.
