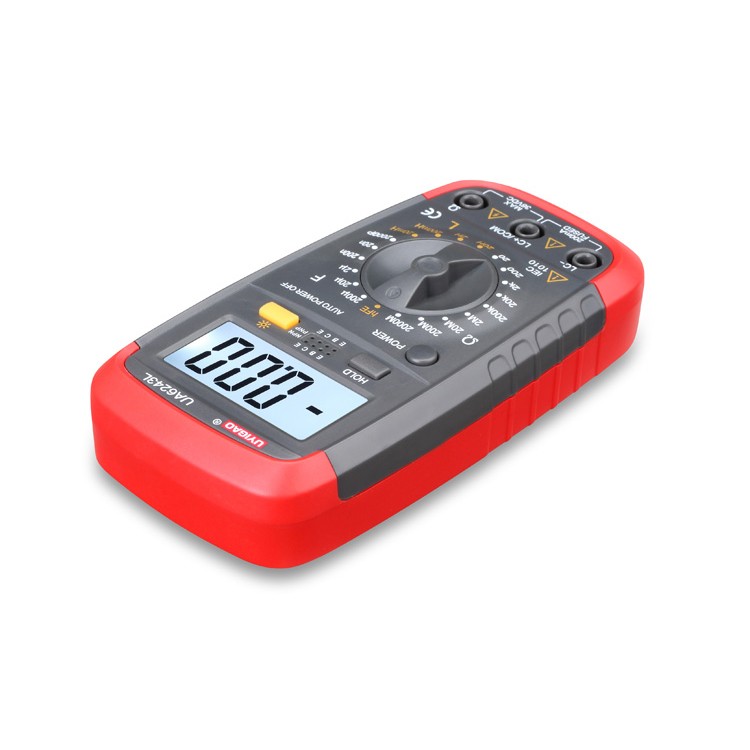

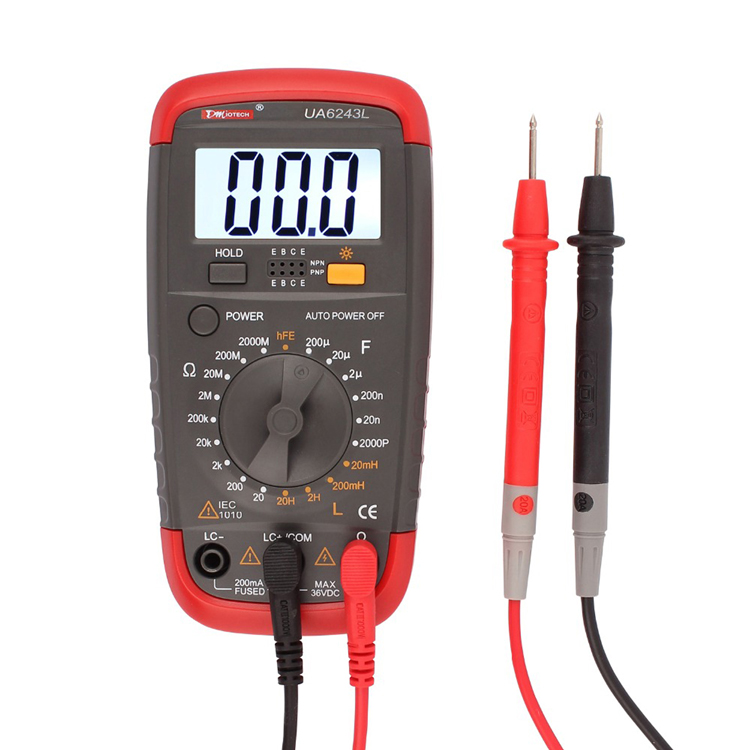

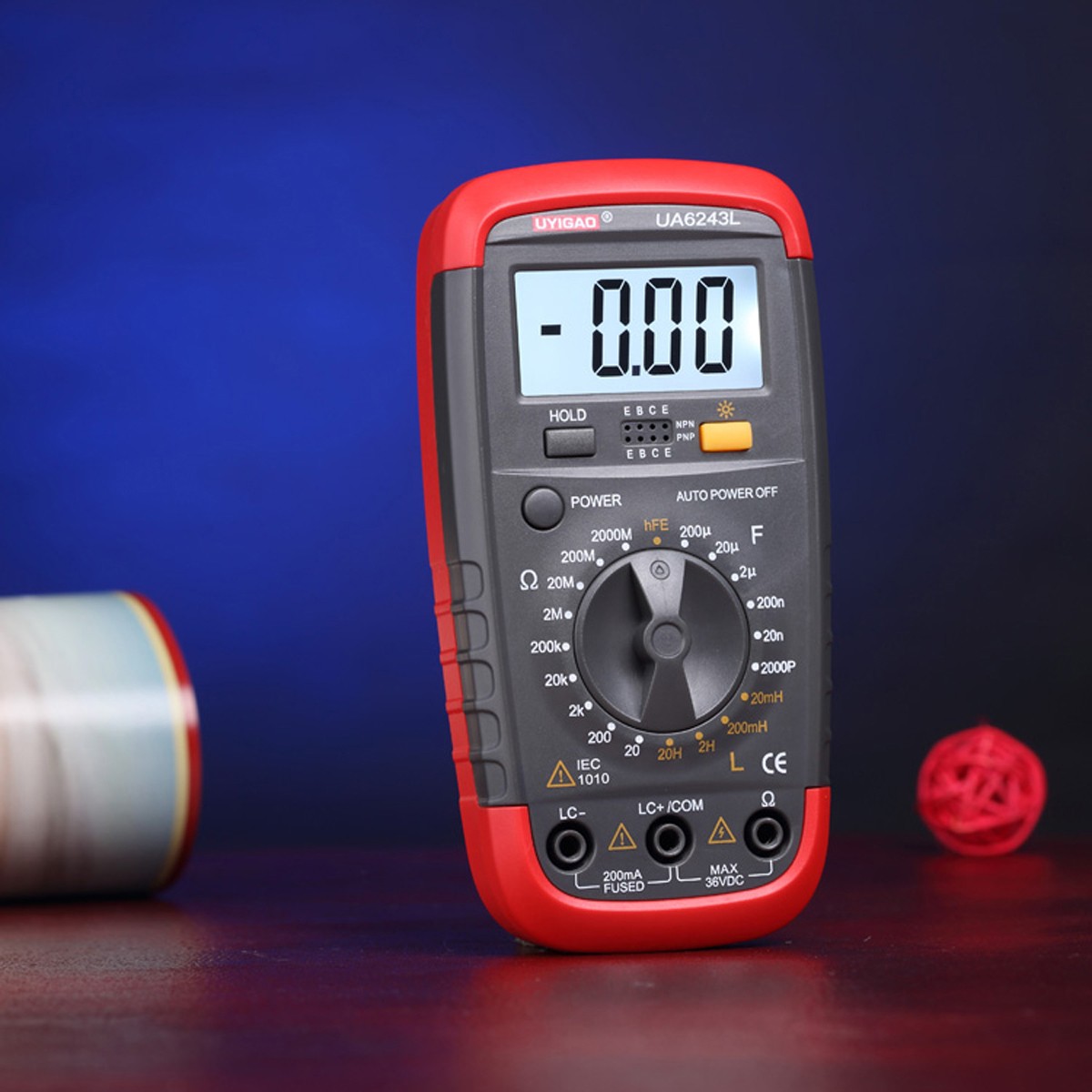

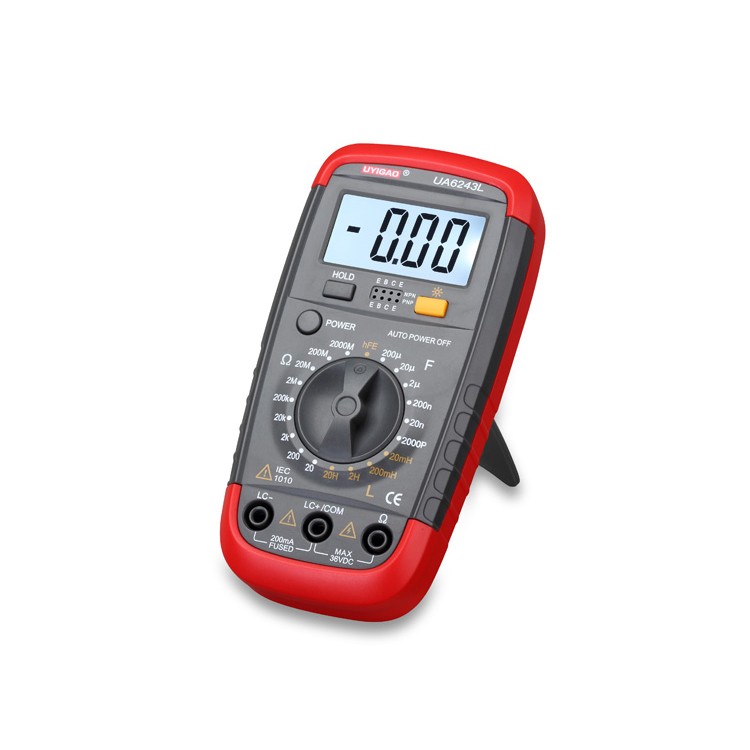

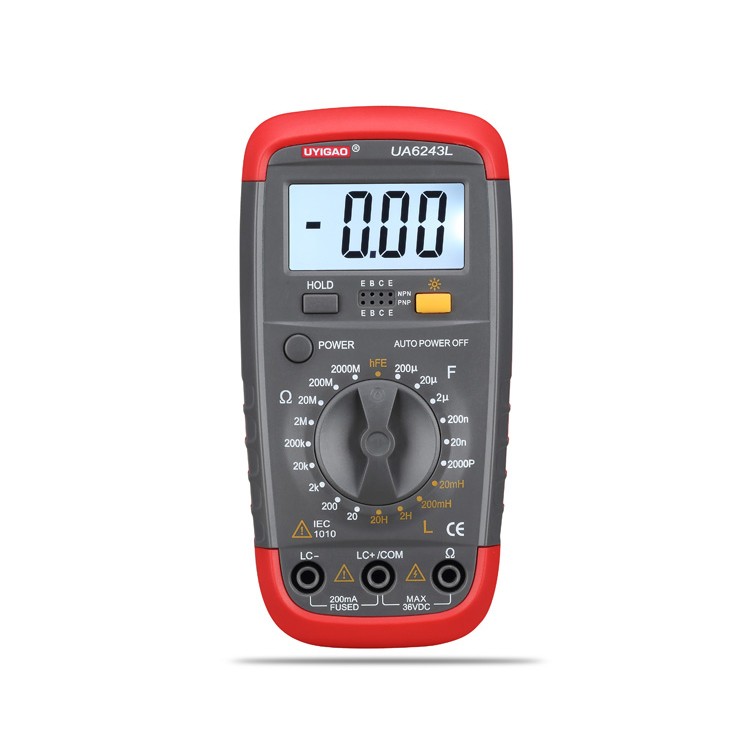

UA6243L LCR METER

200Mohm 200uF 20H Digital LCD Capacitance Inductance LCR Multimeter UA6243L

UA6243L LCR Meter multimeter digital with inductance capacitance resistance multitest tester

Key Specifications/Special Features:

UA6243L inductance capacitance meter is a kind of stable performance, safe and reliable, high precision of handheld 3 1/2 a manual switch range digital instrument

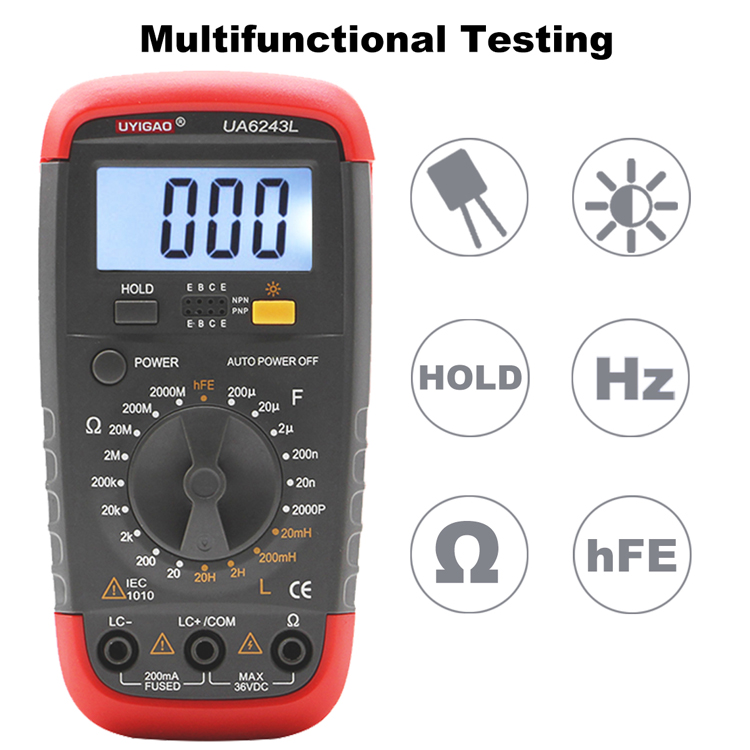

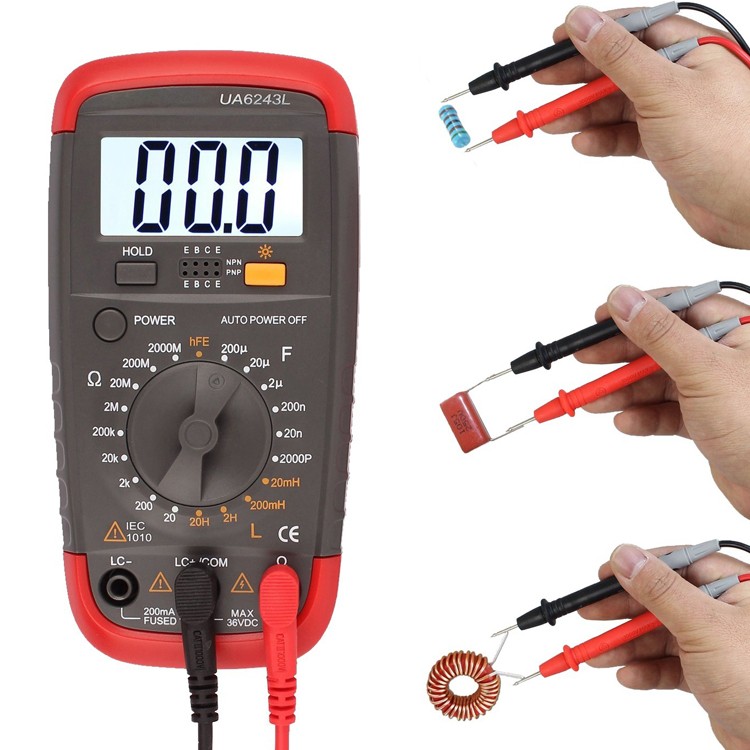

Can be used to measure the capacitance, resistance, triode magnification beta and other functions
Apply to electronic experiment, production lines, resistance of the pits and teaching, or inductance test, it is an ideal repair tool for users

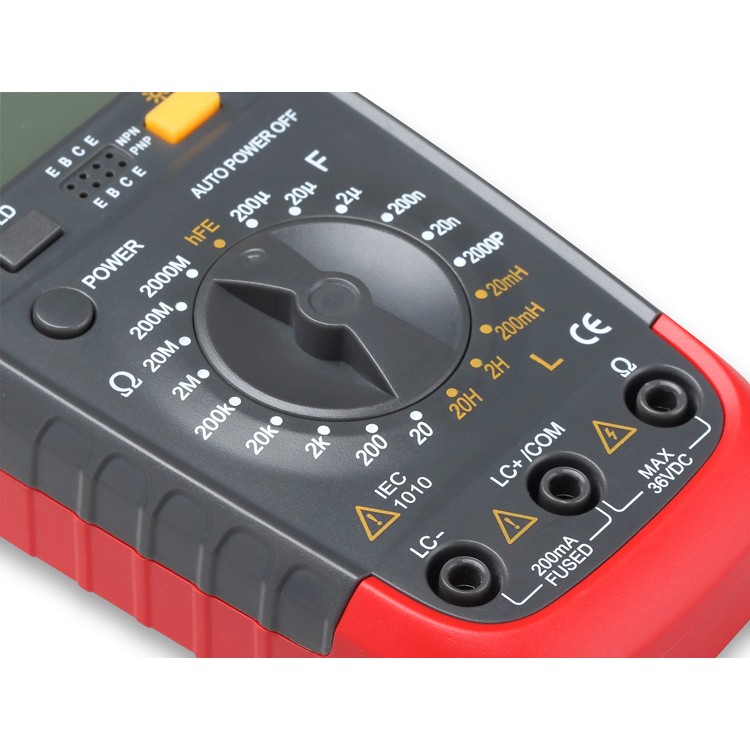

Basic functionRange                       Accuracy
Resistance20Ω/2000Ω/20KΩ/200KΩ/20MΩ/200MΩ±(1.0%+20)
Capacitance2000PF-200uF±(2.5%+20)
Inductance20mH-20H ±(2.5%+25)

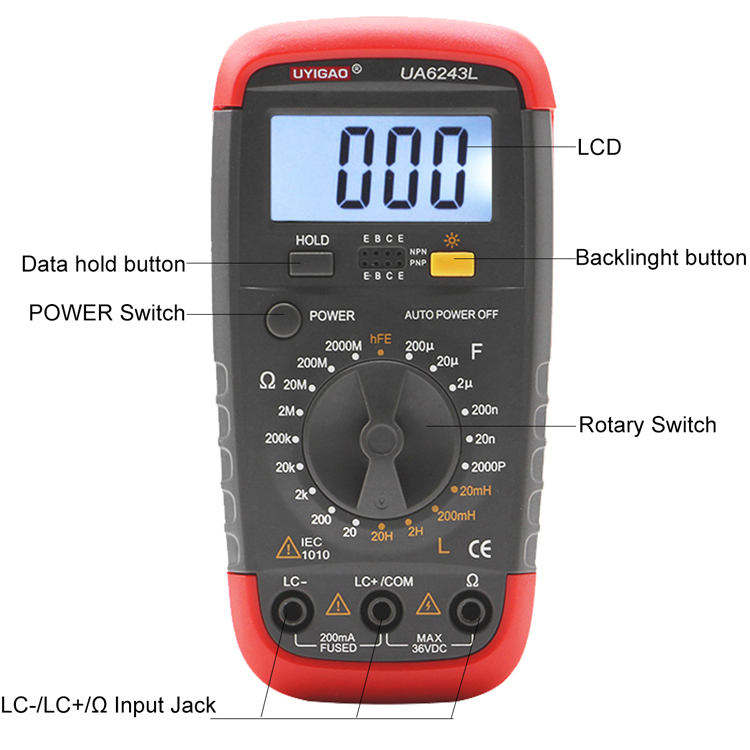

Special function

Maximum display1999
Range choicemanual range
Low battery display
Auto power off
Data hold
Function ProtectionV
Shock Proof ProtectionV
Backlight
General characteristics

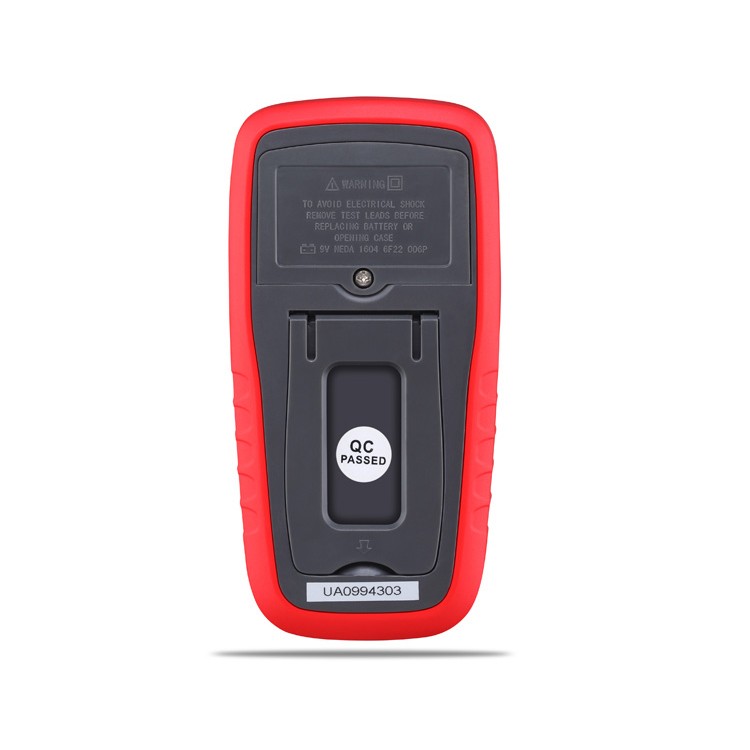

Power9V (6F22) x1

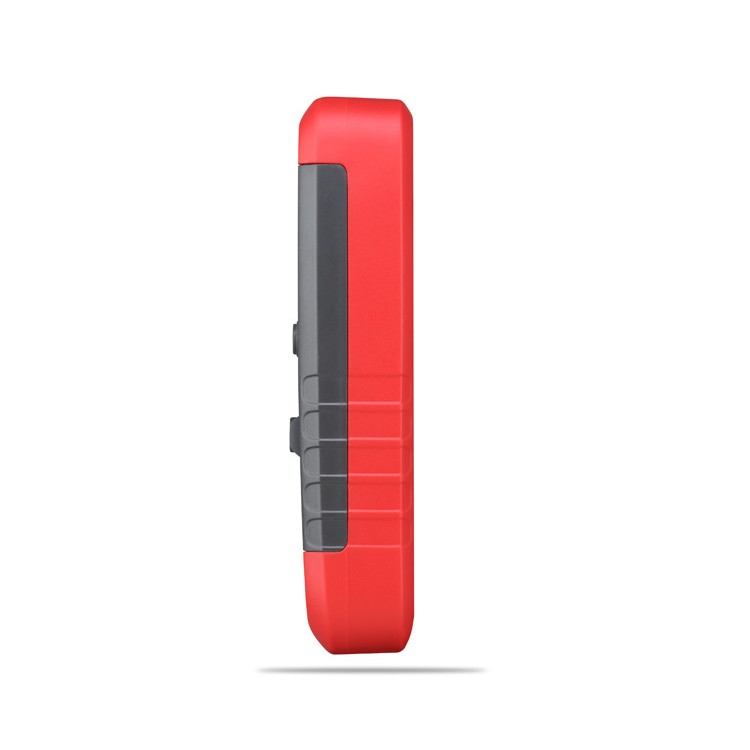

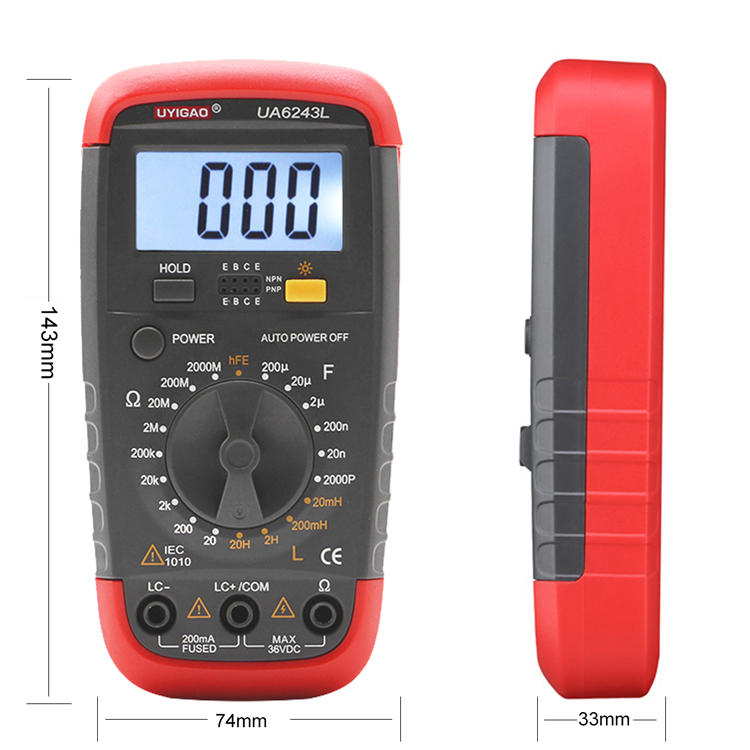

Fuselage size143x74x35mm
Fuselage weightabout 176g

lcr meter, inductance meter, lcr tester, best lcr meter, handheld lcr meter, lcr multimeter, lcr measurement
