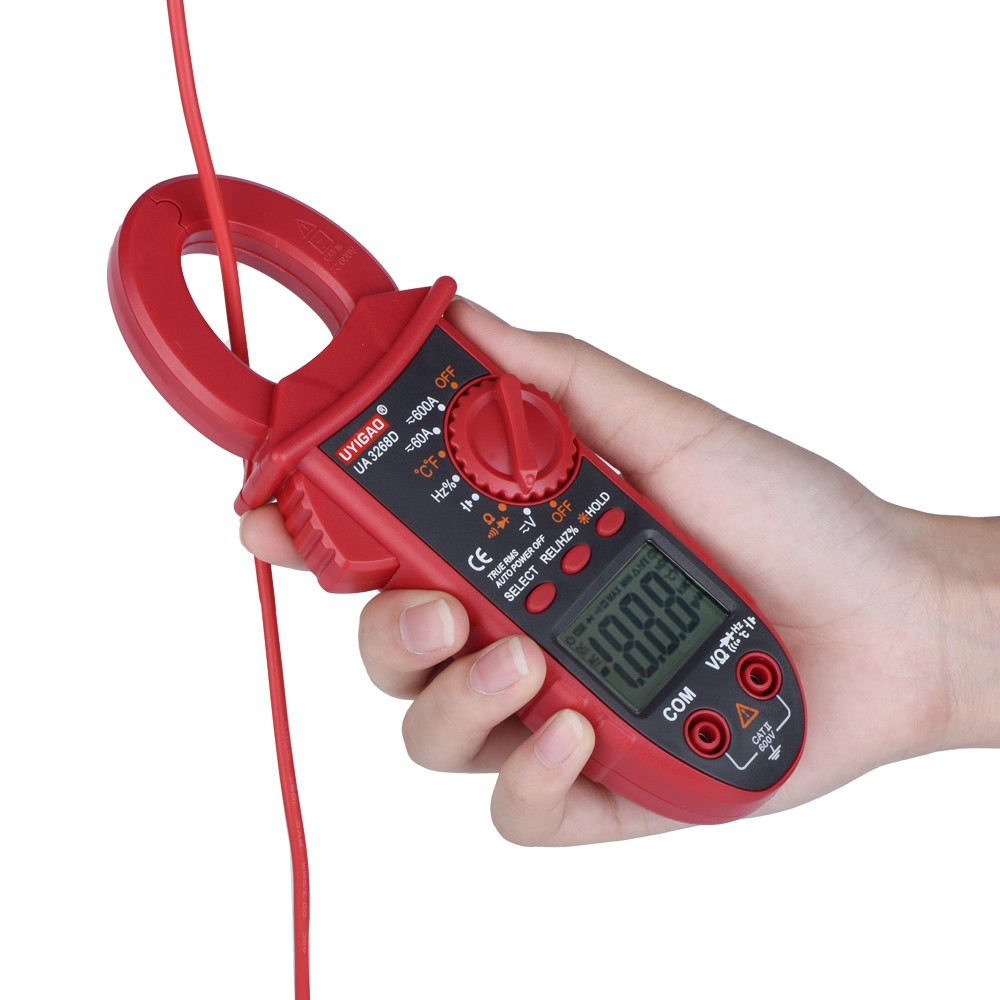

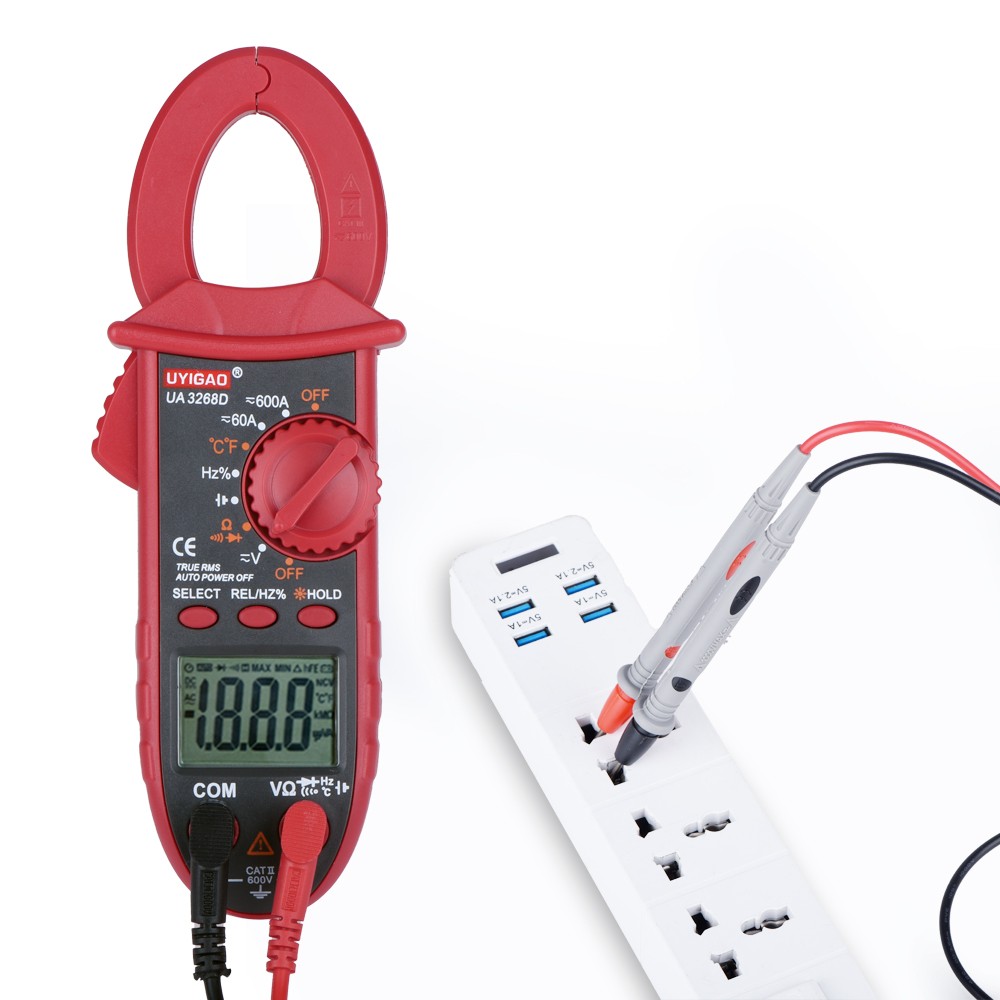

ua3268d ac/dc clamp meter

Electricity is complex due to its various aspects, there are also different devices that could be used to measure the different categories of electricity, and one of them is the clamp meter.

The clamp meter is used by electricians and DIY enthusiasts to measure direct currents, Alternating currents, DC voltage, AC voltage, resistance, and other aspects of electricity, like frequency, continuity, temperature, capacitance, and a lot more.

6000 Counts Auto & Manual Range Digital AC DC Amp clamp meter with Inrush Current TestDual Leads High Precision Tester Meter Digital Tester UA3268D Ammeter Voltmeter Ohmmeter Diode Digital AC/DC Clamp Meter



Key Specifications/Special Features:

  • UA3268D clamp meter, it is a kind of stable performance, safe and reliable communication instrument

  • Full range of overload protection circuit, the unique design make it become the superior performance of special electrical and instrument

  • Ideal tool for smelting, manufacturing, petroleum, electric power, chemical and other industries

Basic featuresRangeAccuracy
DC voltage
6V/60V
600V

±(0.8%+5)
±(1.0%+5)
AC voltage6V/60V
600V
±(1.2%+5)
±(1.5%+5)
DC current60A/600A±(2.5%+10)
AC current60A/600A±(2.5%+8)
Resistance600Ω/6kΩ/60kΩ/600kΩ
6MΩ/60MΩ
± (0.8%+3)
± (1.2%+3)
Capacitance9.999nF/99.99nF/999.9nF
9.999uF/99.99uF/999.9uF
9.999mF
99.99mF
±(3.0%+5)
±(3.0%+5)
±(5%+5)
No specify
Frequency (AC voltage test)10-100kHz±(0.3%+5)
Duty ratio(AC voltage test10-90%±(0.5%+3)
Temperature

-50 to 300ºC,±(1.0%+4)
301 to 1000 ºC±(1.9%+5)
Special function

NCV test×
Diode test
On-off buzzer √
Low battery display √
Data hold √
Auto power off √
Function protection
Operating Mode Auto + manual range —
Backlight √ —
Display 5999 —
LCD size24.3x34.6mm —
Clamp opening size28mm

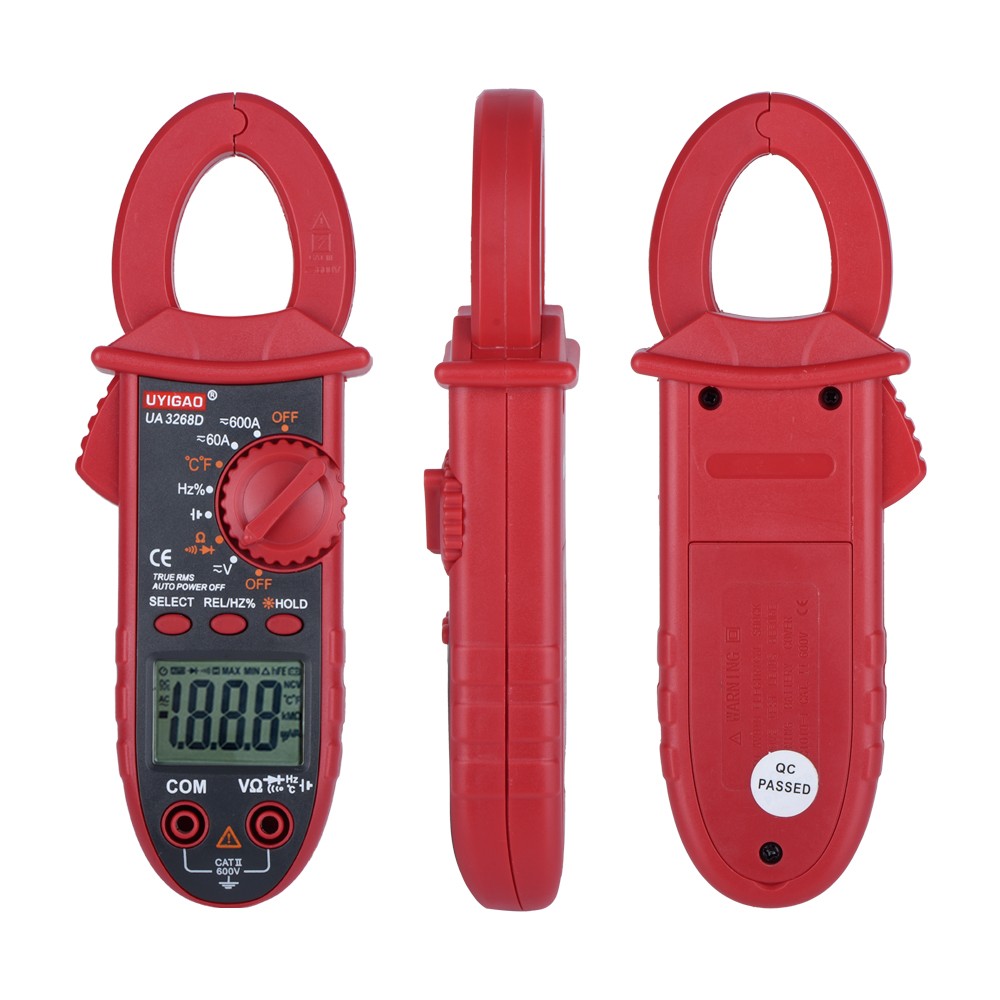

Features description

Product weight 160g
Product size 185 * 25*51
Body colorSteel gray and red

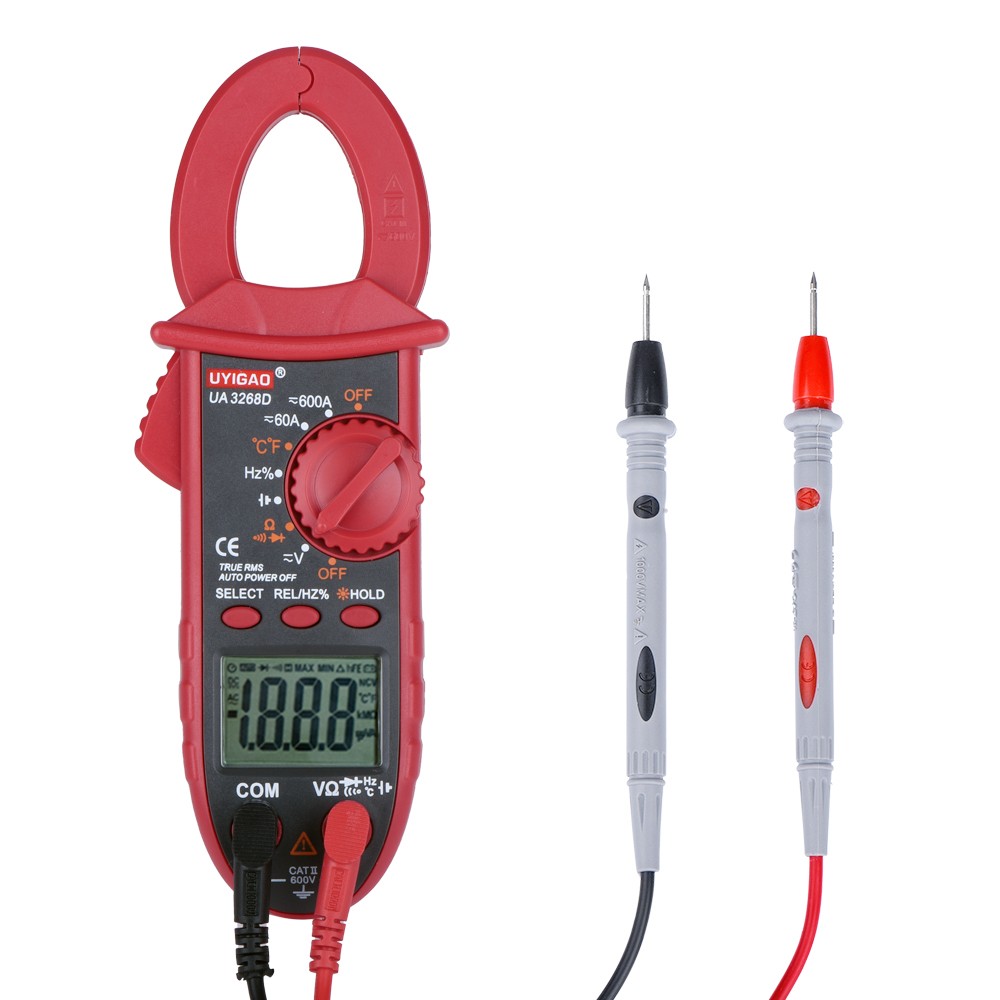

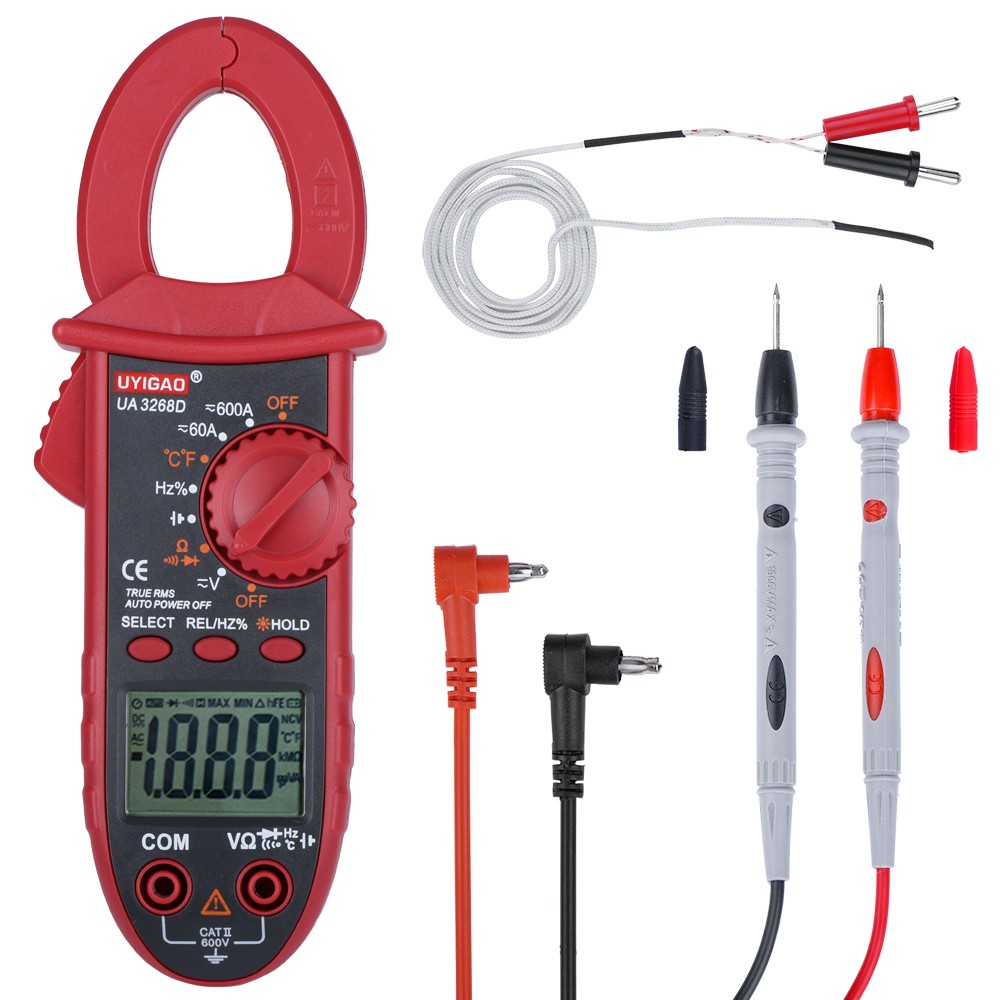

Standard accessoriesTest leads, battery, AAA 1.5V battery

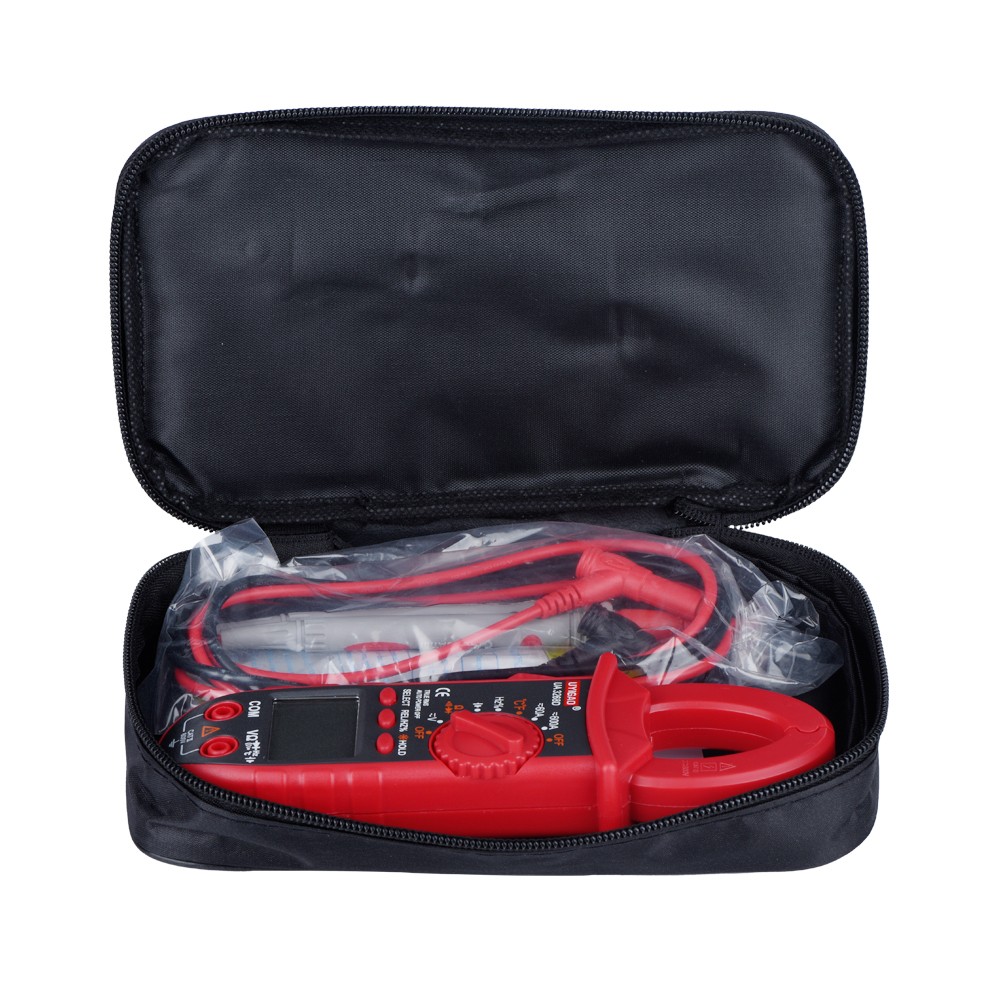

Standard packingColor box, manuals

NOTE: Battery not included.
