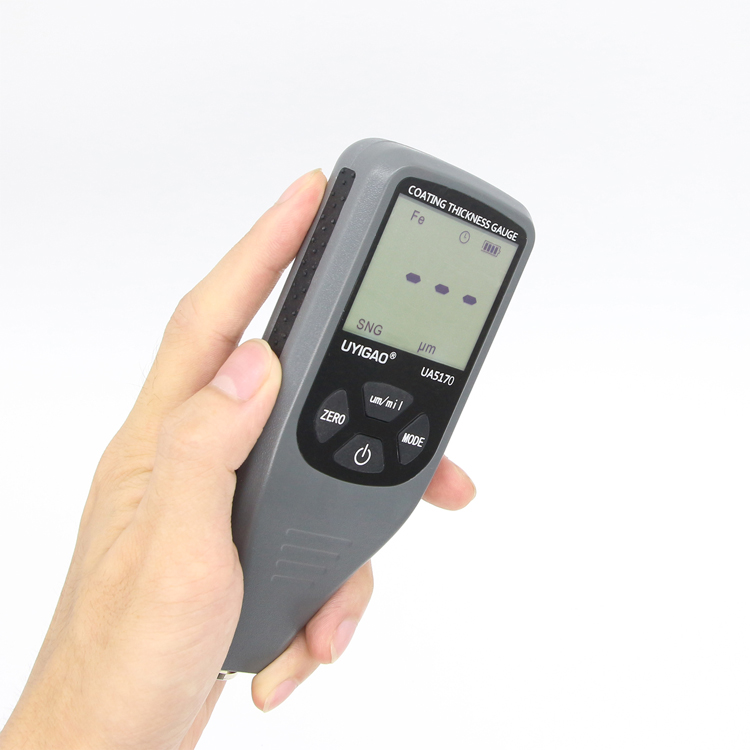

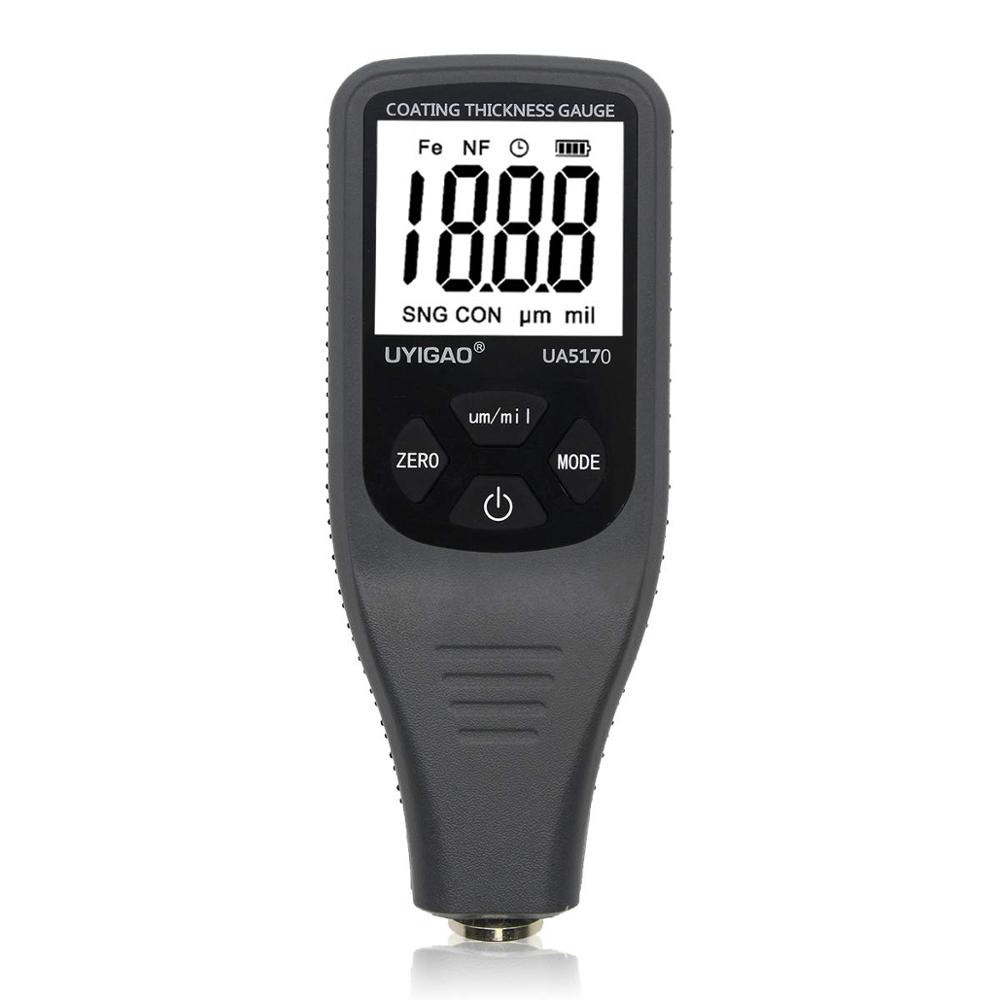

UYIGAO UA5170 Coating Thickness Gauge

The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.
The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.

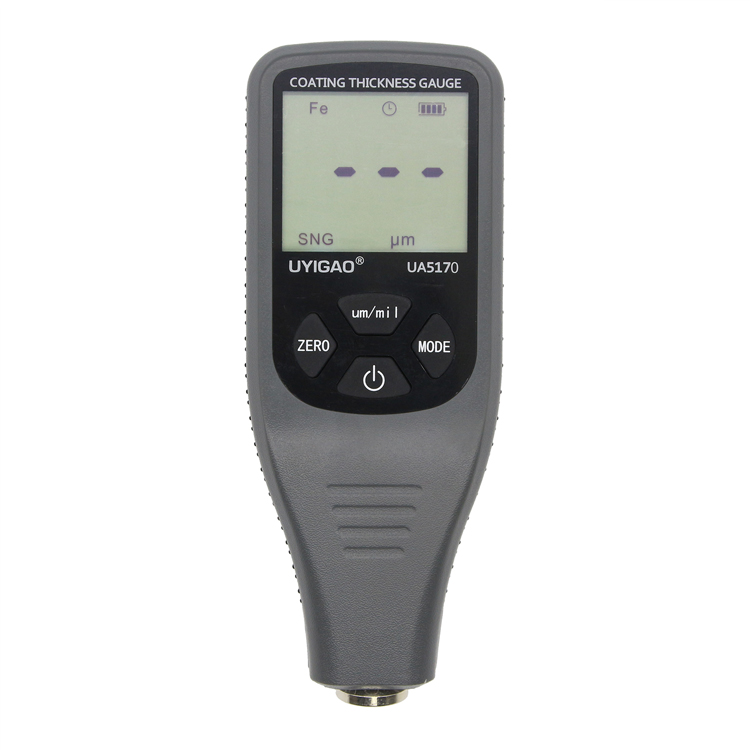

UYIGAO UA5170 Thickness Gauge Digital Paint Coating Thickness Gauge feeler Tester Iron Aluminum Base Metal Thickness Tester Range 0~1.3mm


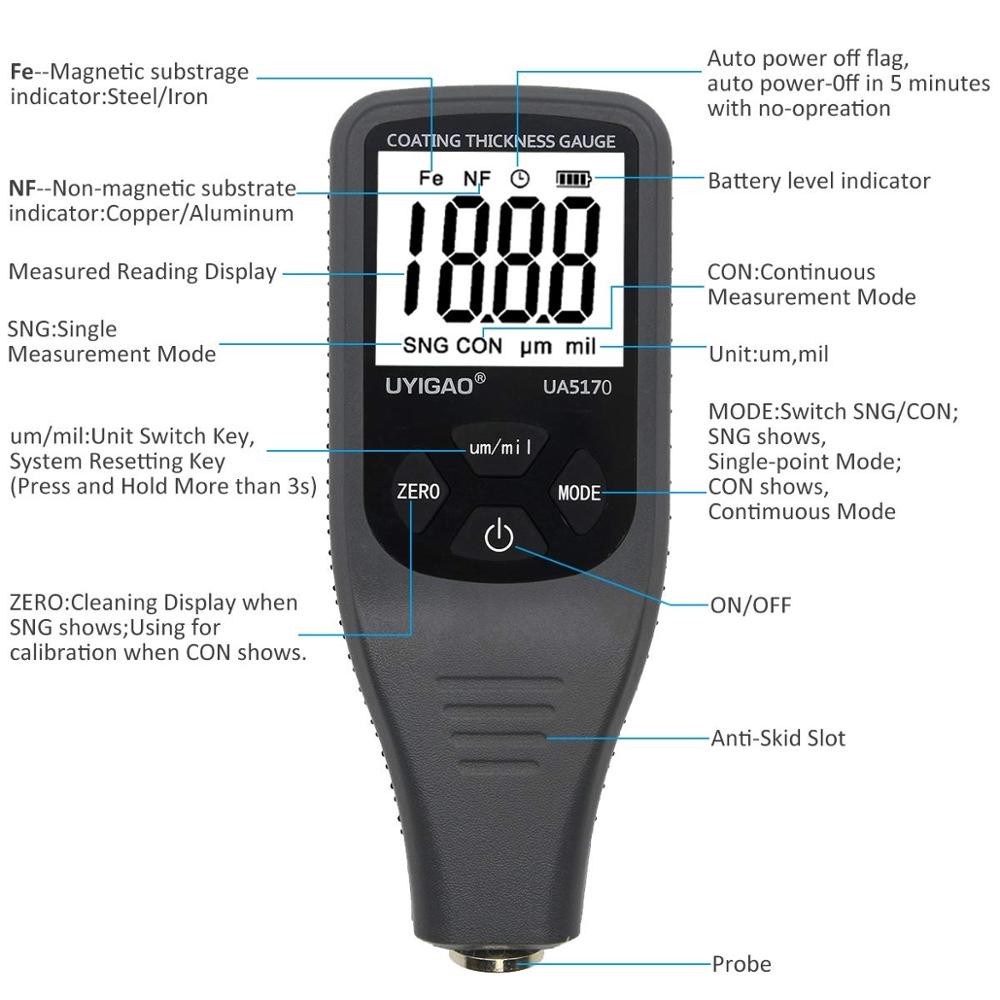

Features:

The thickness gauge is used to measure the thickness of the plated and coatedsheeton metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.
The gauge takes the precision integrated probe, and uses principles of electro-magnetic inductionand the eddy current effect, which automatically detects the attributeof substrates.


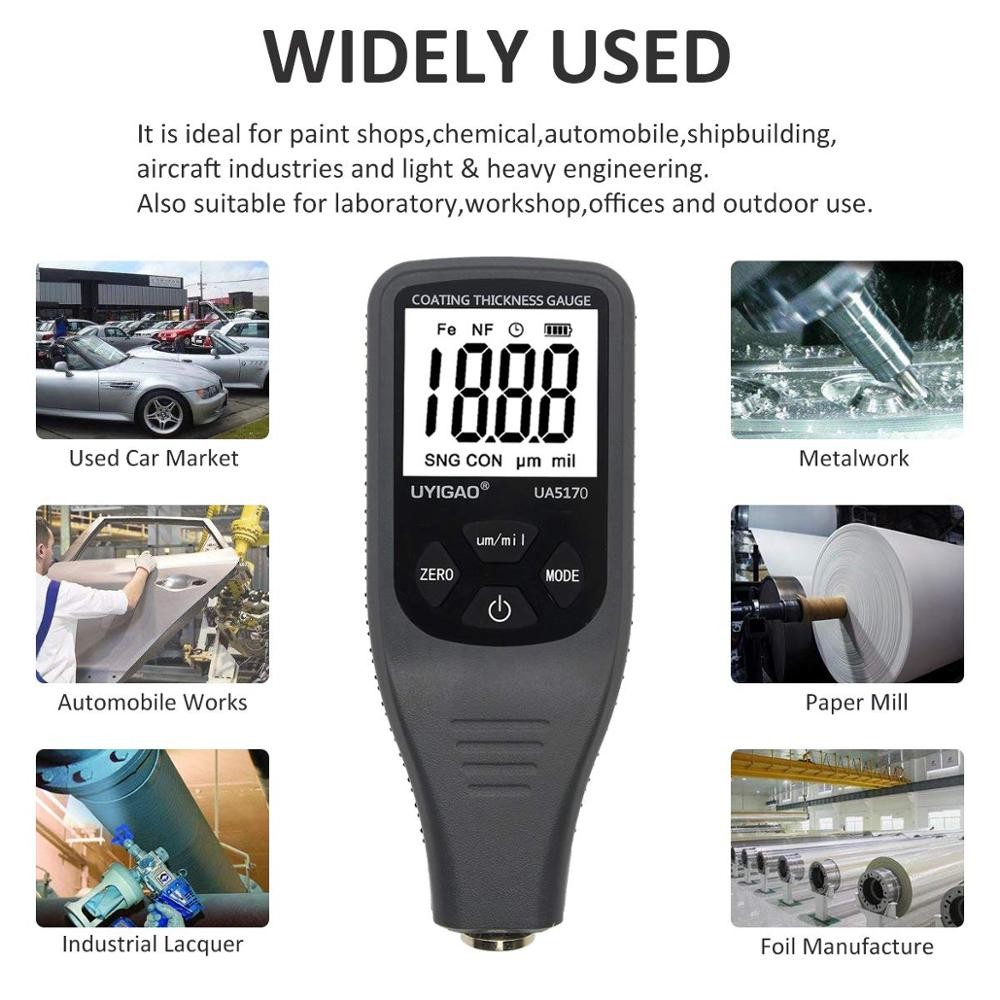

Application Field:

The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

Operating Principle:

Thegauge adopts the principle of electromagnetic induction and eddy current effect.It has F probe and N probe.

1.F probe works on the magnetic induction principle and should be used for detecting the non-magnetic coating’s thickness such as chrome/copper/zinc/varnish/rubber on the iron/steel substrate.

2.N probe works on the eddy current principle and should be used for detecting the insulating coating’s thickness such as paint/anodizing/ceramics on the aluminum/copper/brass substrate.

Specification:




Probe F

Probe N

Principle

Magnetic   Induction

Eddy Current

Range

0~1300um
  0~51.2mil

0~1300um
  0~51.2mil

Accuracy

±(2.5%+1um)
  ±(2.5%+0.04mil)

±(2.5%+1um)
  ±(2.5%+0.04mil)

Resolution

0.1um/0.01mil

0.1um/0.01mil

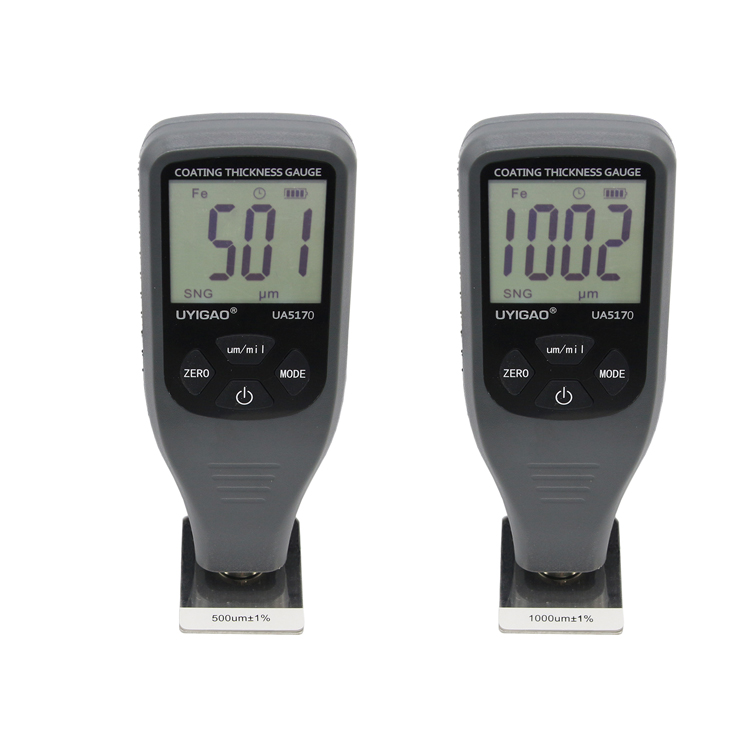

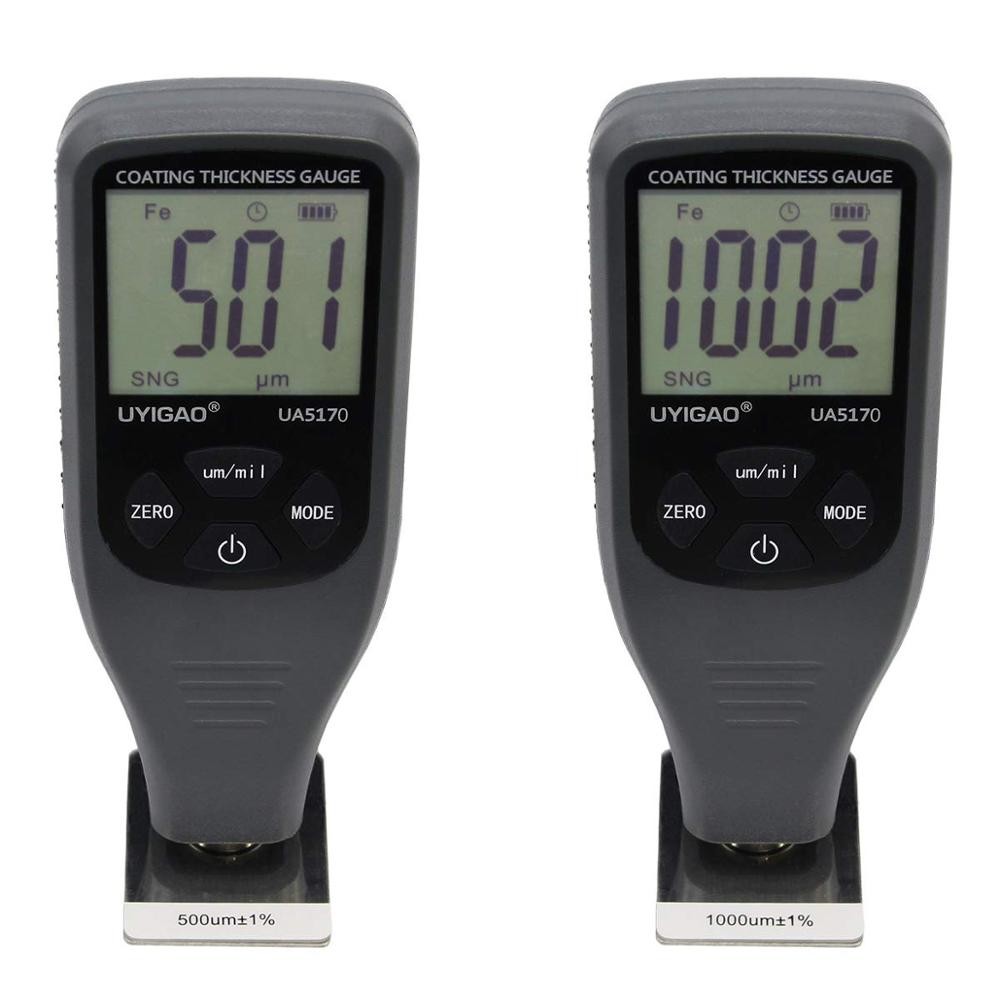

Calibration

Points:   ZERO/50/100/250/500/1000um

Units

um, mil

minimum   curvature radius convex: 1.5mm

minimum   curvature radius concave: 25mm

minimum   measuring area: Diameter 6mm

minimum   thickness of substrate

0.5mm(0.02”)

0.3mm(0.012”)

Power

4 x AAA   batteries

OperationEnvironment

Temperature:0~40(32~104)   Humidity:20%~90%RH

Size

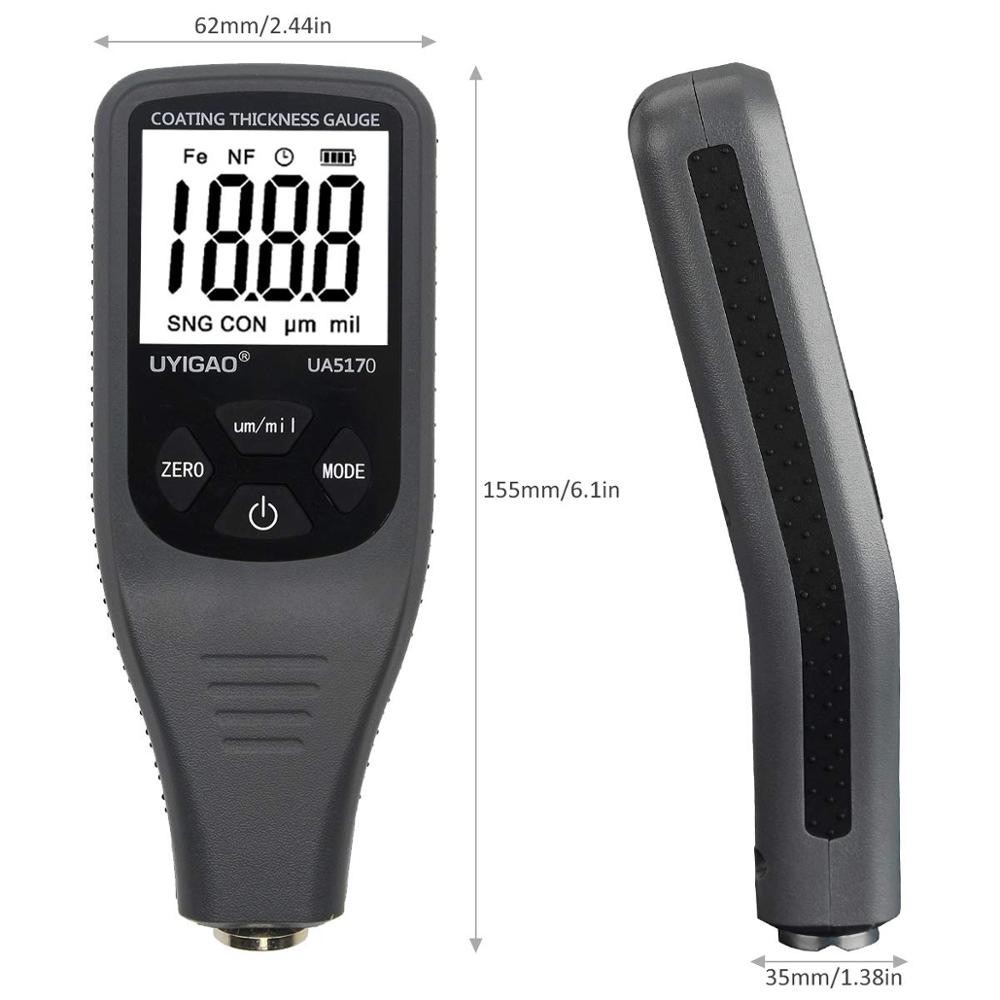

155mm x 62mm x   35mm
  (6.10” x 2.44” x 1.38”)

Weight

125g(4.41oz)

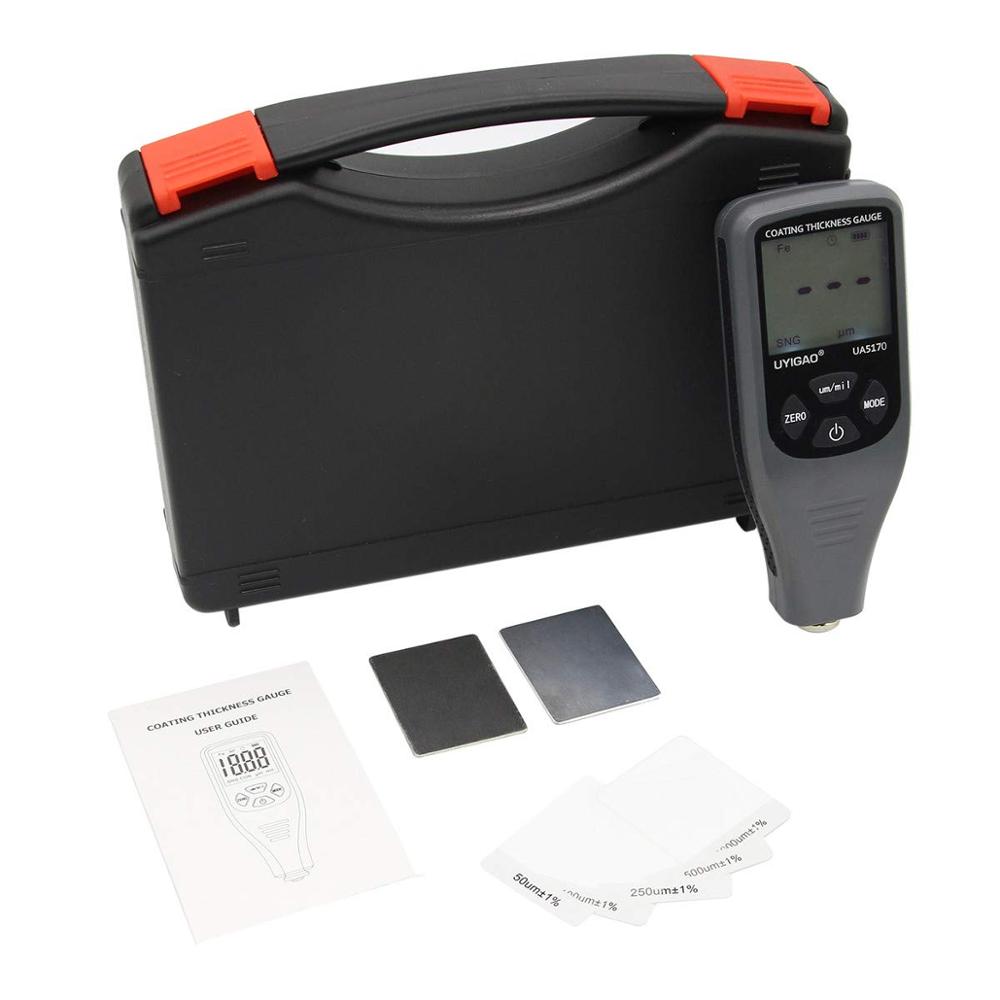

Package includes:
1 x Coating Thickness Gaug (Batteries are not included)
1 x English User Manual
2 x Substrates
5 x Standard foils

1 x Tool box


Note:
For your safety and quickly receive the item, batteries are not included.
