UA63 Vibrometer Vibration Meter Vibration tester

Vibrometer Tester Gauge Analyzer Measure sensitivity accelerometers Digital Vibration Meter

Vibrometer Tester Gauge Analyzer Measure sensitivity accelerometers Digital Vibration Meter

Key Specifications:

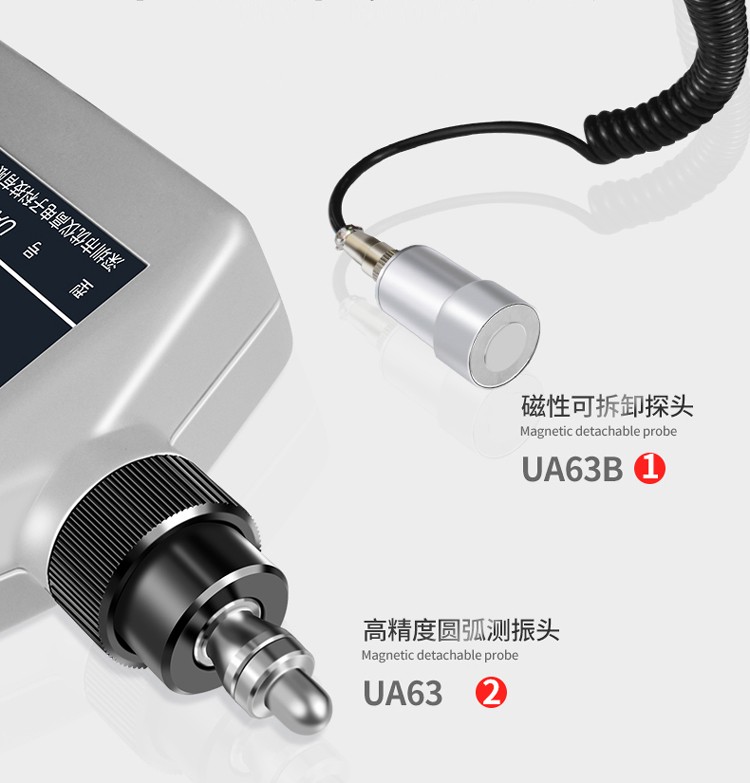

Model: UA63 Vibration Meter with probe and this is split type vibration
Product model: UA63
Mode of operation: automatic range
Product name: vibration meter UA63
Display: 3 1/2
Product categories: vibration
Size: handheld


Basic functions
Vibration displacement
(P-P)
0-1999μm
Vibration velocity(RMS)0-199.9mm/s
Vibration acceleration(O-P)0-199.9m/s
Range of frequency response and amplitude deviation
Vibration displacement(P-P)10-200Hz, ≤±10%
Vibration velocity (RMS)10 to 500Hz, ≤±10%
Vibration acceleration (O-P)10 to 1000Hz, ≤±10%
Amplitude linearity deviation
Vibration displacement(P-P)0-20μm, ≤±10%
≥20μm, ≤±5%
Vibration velocity(RMS)0-2.0mm/s, ≤±10%
>2.0mm/s,≤±5%
Vibration acceleration (O-P)0-2.0m/s,≤±10%
>2.0m/s, ≤±5%
Special features
Low battery display battery voltage is lower than 5.5V, LCD displays low battery symbol
replaced the battery
Data hold time when you release the measure key and the  data can be kept for a minute
Value fluctuation Value indicating the fluctuation is less than a resolution.
 The use of the environment temperature 0 to 40℃
The use of environmental humidity ≤80%
Atmospheric pressure 75 to 106KPA

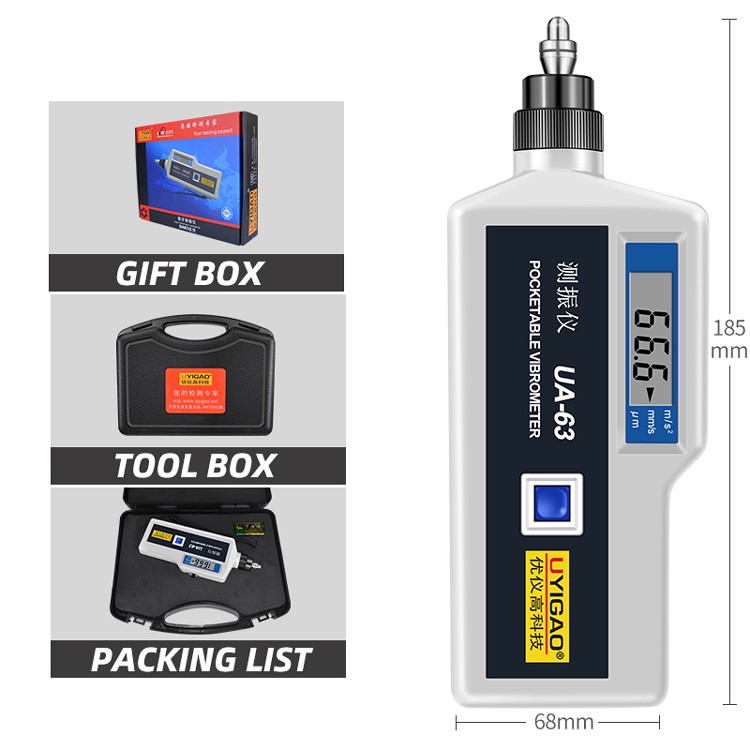

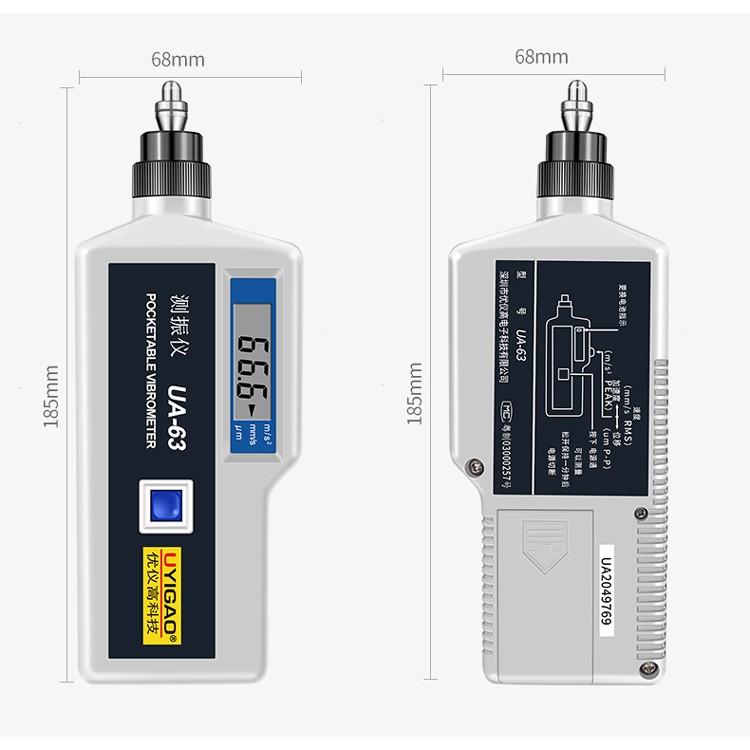

Products size 185x68x30mm
 Product weight 300g (include battery)

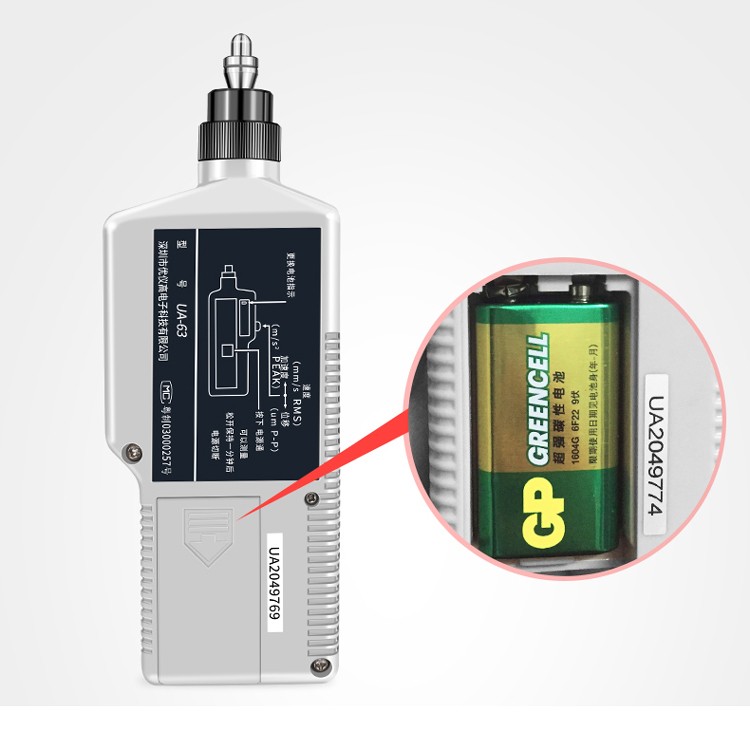

Power supply 9V (6F22) batteries
